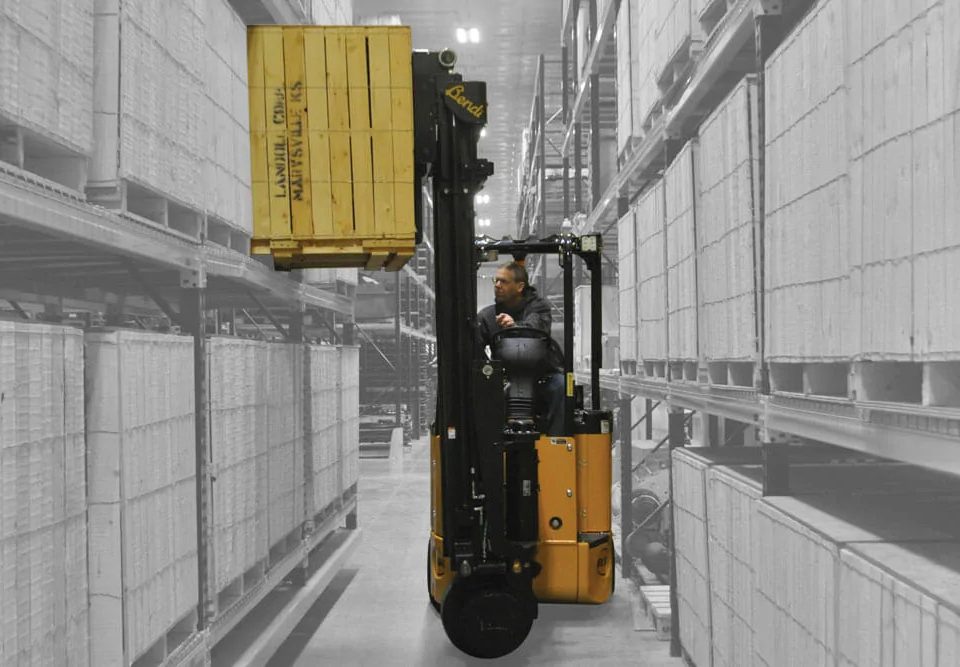

Bendi Front Wheel Drive Articulating VNA Warehouse Forklift

The Bendi model B3/30AC works in aisles as narrow as *72″ (1.8M), has a basic capacity of 3,000 lbs. (1361kg) at 24″ (600mm) load center and has lift heights available to 30′ (9.14M).

The Bendi B3/30AC is a 3-wheel articulating forklift with a single poly front drive tire and solid rubber rear tires. Front articulation of 220°, narrow mast and a compact front end allow easy stacking in Very Narrow Aisles. The B3/30AC can work inside and outside on paved surfaces. The B3/30AC does all the jobs of a reach truck in aisles at least 40″ (1M) smaller.

Productivity

  • 3,000 lb. (1361kg) Capacity at 24″ (600mm) Load Center
  • 3-Wheel Design, Single Front Wheel Drive Provides Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Sideshifter Makes Placing and Picking Loads Effortless
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control

Engine Protection System

  • LandActive Control Provides Enhanced Traction Control Based on Steering Angle
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency

Serviceability

  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Optional Cold Storage Conditioned to -22°F (-30°C)

Standard Specifications

  • Three-Wheel Design, Single Front Wheel Drive
  • 9.75” (248mm) Stroke Integral Side Shifter
  • 220˚ Front End Rotation
  • Adjustable Seat and Steering Wheel
  • DuraSteerTM Front Wheel Hydraulic Steering
  • AC Traction Motor Controller with LandActive Control (LandActive control provides additional control during stacking as the maximum truck speed is controlled by steering angle.)
  • AC Hydraulic Motor Controller
  • Interactive LCD Status Monitor
  • BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration
  • Hydraulic Rear Wheel Brakes
  • Safety Seat Switch and Seat Belts
  • 40” (1000mm) Tapered Tip Forks – Rear Tow Pin
  • Hand Actuated Parking Brake
  • Creep Speed Mode Selection Switch
  • High Visibility Mast and 36” (914mm) High Backrest
  • Mast Tilt 1º Forward and 2º Backward
  • 48 Volt Electrical System
  • Three Section Hydraulic Control Valve
  • Smooth Poly Front Drive Tire and Rubber Rear Tires
  • Horn, Key Switch and Hour Meter
  • Meets ANSI B56.1

Optional Equipment

  • Non-Standard Fork Lengths
  • Dual Overhead Guard-Mounted LED Headlights
  • Dual Rear Safety LED Light Bars
  • Safety Flashing LED Light
  • Backup Alarm – Beeping Tone (“Smart” dB Adjusting)
  • Fire Extinguisher – OHG Post Mounted
  • Roller / Slide-Out Battery Tray
  • Lazer Fork Height Indicator
  • Fork Positioner
  • Keyless Key Pad On-Off
  • Cold Storage Conditioned to -22°F (-30°C)

TECHNICAL DATA

Model B3/30AC
Capacity
at 24" (600mm) Load Center
lbs/kg
3,000 / 1,361
Weight
with Battery
lbs/kg
12,800 / 5,818
Travel Speed
Loaded
mph/kph
5.5 / 8.9
Travel Speed
Unloaded
mph/kph
6 / 9.7
Lift Speed
Loaded
fpm/mpm
90 / 27.4
Lift Speed
Unloaded
fpm/mpm
110 / 33.5
Lowering Speed
Loaded
fpm/mpm
100 / 30.5
Lowering Speed
Unloaded
fpm/mpm
90 / 27.4
Mast Tilt
Fwd / Back
deg
1 / 2
Lost Load Center
a
in/mm
14.2 / 361
Wheelbase
b
in/mm
72.6 / 1,844
Overall Length Fork to Face
c
in/mm
112.9 / 2,868
Underclearance
d
in/mm
3 / 76
Cab Floor Height
e
in/mm
31 / 787
Seat Height
f
in/mm
51 / 1,295
Overhead Guard Height
g
in/mm
89 / 2,261
Chassis Width
h
in/mm
44.8 / 1,138
Gradeability
Loaded / Unloaded
%
8 / 5
Hydraulic Motor Rating
Continuous Duty Rating
type/kWh
AC / 12
Traction Control Type
Curtis
AC
Hydraulic Control Type
Curtis
AC
Wheel Sizes
Front (1 Each)
in/mm
18x7 / 457x178
Wheel Sizes
Rear (2 Each)
in/mm
18x7 / 457x178
Drive Motor Rating
Dual rear
type/kWh
5.6 ea - 11.2 Total
Front Articulation
m
deg
220

MAST DIMENSIONS

A - LIFT HEIGHT (Inches) A - LIFT HEIGHT (Meters) B - LOWERED HEIGHT (Inches) B - LOWERED HEIGHT (Meters) C - **FREE LIFT (Inches) C - **FREE LIFT (Meters)
156
3.96
92
2.34
56
1.42
204
5.18
108
2.74
72
1.83
204
5.18
108
2.74
72
1.83
222
5.64
118
3.00
82
2.08
250
6.35
133
3.38
97
2.46
288
7.32
147
3.73
111
2.82
312
7.92
155
3.94
119
3.02
360
9.14
174
4.42
138
3.51

AISLE DIMENSIONS

LOAD DEPTH X WIDTH MINIMUM CLEAR AISLE
40" X 48" (1,000 X 1,200mm)
66'' (1,676mm)
48" X 40" (1,200 X 1,000mm)
72'' (1,828mm)
Minimum Clear Transfer Aisle
121'' (3,000mm)

RECOMMENDED BATTERY

Battery Designation: 24-85-17, 48 VOLT, 680 AHC (6 HOUR RATE)
Nominal Size: 27'' x 38.5'' x 22.625'' (69 x 98 x 58cm)
Truck Compartment Size: 27.5'' x 38.75'' x 23'' (70 x 98 x 58cm)
Battery Weight: Min. 2,600 lbs. (1,181kg) - Max. 3,100 lbs. (1,409kg)
Leads are at Position C, 20'' (50.8cm) Long, with SB 350 Amp Blue Connector

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.

Product Brochure - English

Bendi B3/30AC Landoll Forklift Literature

Contact Us

Talk to a Landoll specialist who can help find the best solution for your needs and budget.

April 6, 2021

Bendi B3/30AC

Bendi Front Wheel Drive Articulating VNA Warehouse Forklift The Bendi model B3/30AC works in aisles as narrow as *72″ (1.8M), has a basic capacity of 3,000 […]
April 6, 2021

Bendi B40VAC

Bendi Rear Wheel Drive Narrow Aisle Multipurpose Electric Forklift The Bendi model B40VAC works in aisles as narrow as *72″ (1.8M), has a basic capacity of […]
April 6, 2021

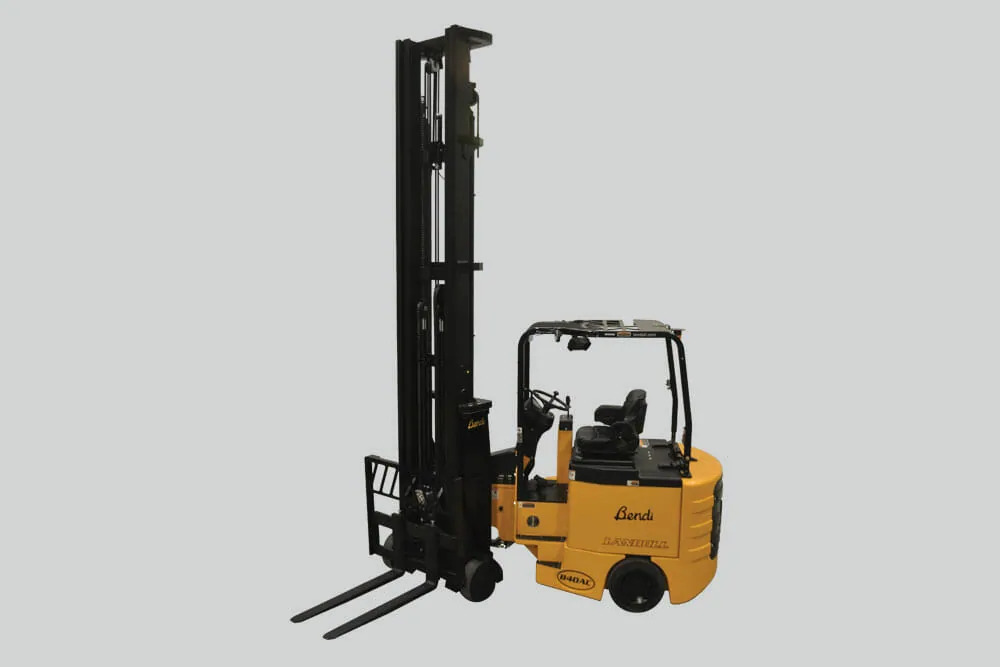

Bendi B40AC-HL
