Bendi Rear Wheel Drive High Capacity, High Lift Narrow Aisle Multipurpose Electric Articulating Forklift

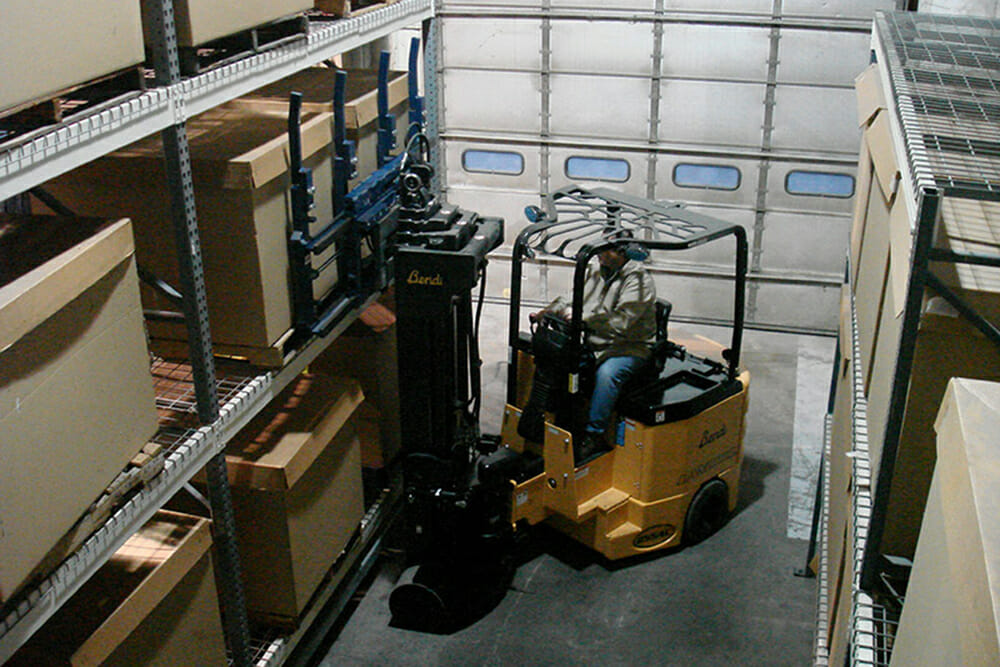

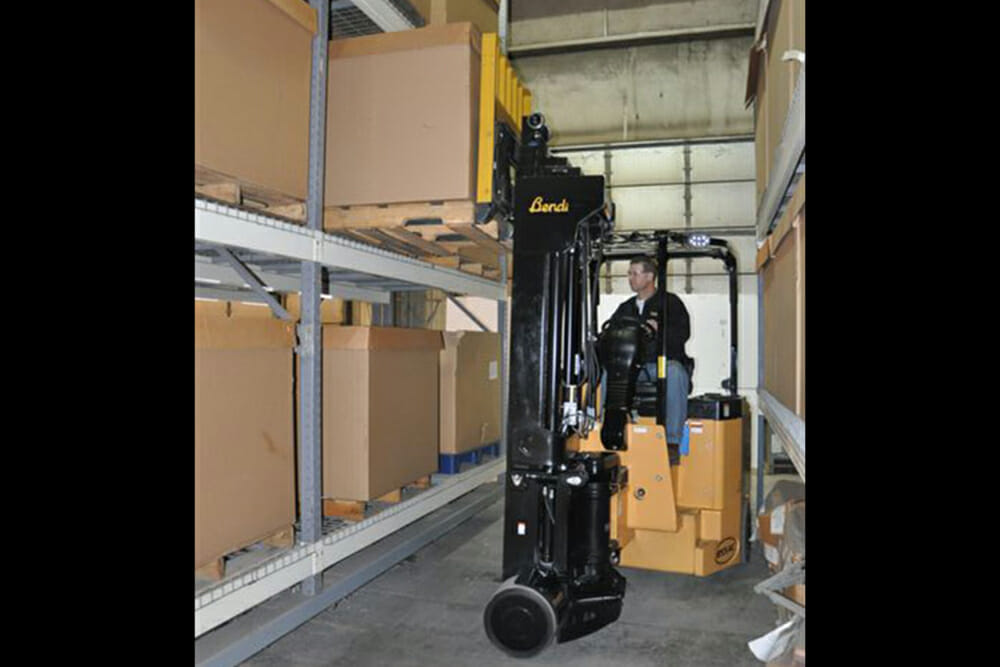

The Bendi model B55AC works in aisles as narrow as *84″ (2.13M). The B55AC high volume model has a basic capacity of 5,500 lbs. (2495kg) at 24″ (600mm) load center and has lift heights available to 30′ (9.14M).

The B55AC model is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. The B55AC can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors and do the jobs of reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.

Contact a Sales Rep

Exceptional Performance and Maneuverability

Equipped with the Landoll DuraSteerTM front wheel hydraulic steering, the B55AC provides exceptional control and makes load placement and retrieval superior to the competition.

Maximizes Material Handling Productivity

The versatile Bendi B55AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. The Bendi B55AC has large diameter tires and the truck has great underclearance for avoiding floor obstructions. One truck can go from inside the dock to the rack, eliminating staging and additional operators and support forklifts.

*Based on 48” (1200mm) long x 40” (1000mm) wide load.

Other Features

  • B55AC 5,500 lb. (2495kg) Capacity at 24″ (600mm) Load Center
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle

Other Features

  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System
  • Optional Cold Storage Conditioned to -22°F (-30°C)

Standard Specifications

  • 5,500 lb. (2,495kg) Capacity
  • Lift Heights to 360” (9.14M)
  • 84” (2.13M) Stacking Aisle with 48” (1,200mm) Long Load
  • High Visibility 3-Stage or 4-Stage Mast
  • Integral 11.2” (285mm) Stroke Side Shifter and 36” (914mm) High Load Backrest
  • Dual Inside / Outside Capability
  • Articulated Floating Front Axle, 48” (1,219mm) Wide
  • Large Diameter Smooth Rubber Drive Tires
  • Polyurethane Load Tires
  • 180° Front-End DuraSteer™ Articulation Steering Assembly with 5-Year Warranty
  • Heavy Duty Dual Rear Wheel Planetary Drives
  • AC Traction and Hydraulic Controllers
  • Powerful AC Drive and Hydraulic Motors
  • Comfortable Seated Operation with All Truck Controls in Easy Reach
  • Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter
  • Adjustable Cloth Suspension Swivel Seat
  • Armrest, Adjustable Steering Column, Key Switch, Horn and Seat Belt
  • Hydraulic Power Steering
  • 4-Post Heavy-Duty Overhead Guard
  • Safety Deadman Seat Switch
  • Heavy Duty Unitized Robotic Welded Chassis Design
  • Provisions for RF Terminals Provided
  • Accepts Class II Attachments
  • Easily Accessible Components for Low Cost Maintenance

Optional Equipment

  • Non-Standard Fork Lengths
  • LED Headlights, Flashing Light and Rear Safety Lights
  • Integral Side Shifting Fork Positioner
  • Auxiliary Hydraulics
  • Non-Marking Tires
  • UL 583, Type EE Electrical Rating, FM Approved
  • Vinyl Seat
  • Slide-Out Battery Tray
  • Fire Extinguisher
  • Lazer Fork Height Indicator
  • Carriage Mounted Camera with Operator Compartment Monitor
  • Capable of Freezer Operation to -22°F (-30°C)

TECHNICAL DATA

Model B55AC
Capacity
at 24" (600mm) Load Center
lbs/kg
5,500 / 2,495
Weight
with Battery
lbs/kg
16,950 / 7,705
Travel Speed
Loaded
mph/kph
6.5 / 10.5
Travel Speed
Unloaded
mph/kph
7 / 11.3
Lift Speed
Loaded
fpm/mpm
90 / 27.4
Lift Speed
Unloaded
fpm/mpm
110 / 33.4
Lowering Speed
Loaded
fpm/mpm
100 / 30.5
Lowering Speed
Unloaded
fpm/mpm
90 / 27.4
Mast Tilt
Fwd / Back - Up to 293" (7.44M)
deg
3 / 3
Mast Tilt
Fwd / Back - 294" (7.46M) to 360" (9.14M)
deg
1 / 2
Lost Load Center
E
in/cm
12 / 310
Wheelbase
F
in/cm
69 / 175
Rear Overhang
G
in/cm
31.7 / 81
Overall Length Fork to Face
H
Mast Vertical
in/cm
113 / 287
Underclearance
I
in/cm
3/ 7.6
Operator Floor Height
J
in/cm
31 / 79
Overhead Guard Height
K
in/cm
89 / 226
Overhead Guard Width
L
in/cm
46 / 117
Overall Width
M
in/cm
56 / 142
Fork Carriage Width
N
in/cm
41 / 104
Fork Length
O
in/cm
40 / 101
Out to Out Fork Spread
P
Minimum/Maximum
in/cm
9.4-39.5 / 24-100
Battery Compartment Height
Q
Floor to Top of Battery Tray
in/cm
19 / 48
Right Angle Stacking Aisle
with 48"L x 40"W (1200mm x 1000mm) Load
in/cm
84 / 213
Intersecting Aisle
with 48"L x 40"W (1200mm x 1000mm) Load
in/cm
114 / 289
Gradeability
Loaded / Unloaded
%
15 / 15
Hydraulic Motor Rating
Continuous Duty Rating
type/kWh
AC / 16.8
Traction Motor Rating
Continuous Duty Rating
type/kWh
AC / 7.4 ea - 15 Total
Traction Control Type
Induction
AC
Hydraulic Control Type
Induction
AC
Wheel Sizes
Front (2 Each) Poly - Dia. x Face
in/cm
14x8 / 36x20
Wheel Sizes
Rear (2 Each) Rubber - Dia. x Face
in/cm
18x9 / 46x23

MAST DIMENSIONS

A - LIFT HEIGHT (Inches) A - LIFT HEIGHT (Meters) B - LOWERED HEIGHT (Inches) B - LOWERED HEIGHT (Meters) C - **FREE LIFT (Inches) C - **FREE LIFT (Meters) D - OVERALL HEIGHT (Inches) D - OVERALL HEIGHT (Meters)
Triple (3-Stage) Mast
188
4.78
83
2.11
47
1.19
224
5.69
198
5.03
87
2.21
51
1.30
234
5.94
216
5.49
95
2.41
59
1.50
252
6.40
223
5.66
98
2.49
62
1.57
259
6.58
242
6.15
107
2.72
71
1.80
278
7.06
258
6.55
115
2.92
79
2.01
294
7.47
272
6.91
121
3.07
85
2.16
308
7.82
296*
7.52
129
3.28
93
2.36
322
8.43
312*
7.92
132
3.35
96
2.44
348
8.84
323*
8.20
138
3.51
102
2.59
359
9.12
360*
9.14
156
3.96
120
3.05
396
10.06
374*
9.50
167
4.24
131
3.33
410
10.40
Quad (4-Stage) Mast
250
6.35
91
2.31
55
1.40
286
7.26
260
6.60
95
2.41
59
1.50
296
7.52
276
7.01
102
2.59
66
1.68
312
7.92
295*
7.49
109
2.77
73
1.85
331
8.41
315*
8.00
117
2.97
81
2.06
351
8.92
* Tilt Restricted to 1 degree Forward and 2 degrees Backward
** Free Lift Based on 36" (914mm) High Load Backrest

AISLE DIMENSIONS

LOAD DEPTH X WIDTH MINIMUM CLEAR AISLE
40" X 48" (1,000 X 1,200mm)
78" (1,930mm)
48" X 40" (1,200 X 1,000mm)
78" (1,930mm)
Transfer or End Aisle
114" (2,896mm)

RECOMMENDED BATTERY

LOAD DEPTH X WIDTH
Nominal Size: 44.75" x 32.25" x 22.63" (114 x 82 x 58cm)
Truck Compartment Size: 44.875" x 32.5" x 23" (114x83x59cm)
Battery Weight Min: 3,500 lbs. (1,590kg) Max: 4,000 lbs. (1,818kg)
Leads are at Position A, 12" (30.5cm) Long, with SB 350 Amp Blue Connector

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.
