Drexel SwingMast® Rear Wheel Drive/Steer Very Narrow Aisle Warehouse Forklift

The Drexel model SLT30AC and SLT35AC work in aisles as narrow as 56″ (1.4M), have a basic capacity of 3,000 lbs. (1361kg) or 3,500 lbs. (1588kg) at 24″ (600mm) load center and lift heights available to 26′ (7.92M).

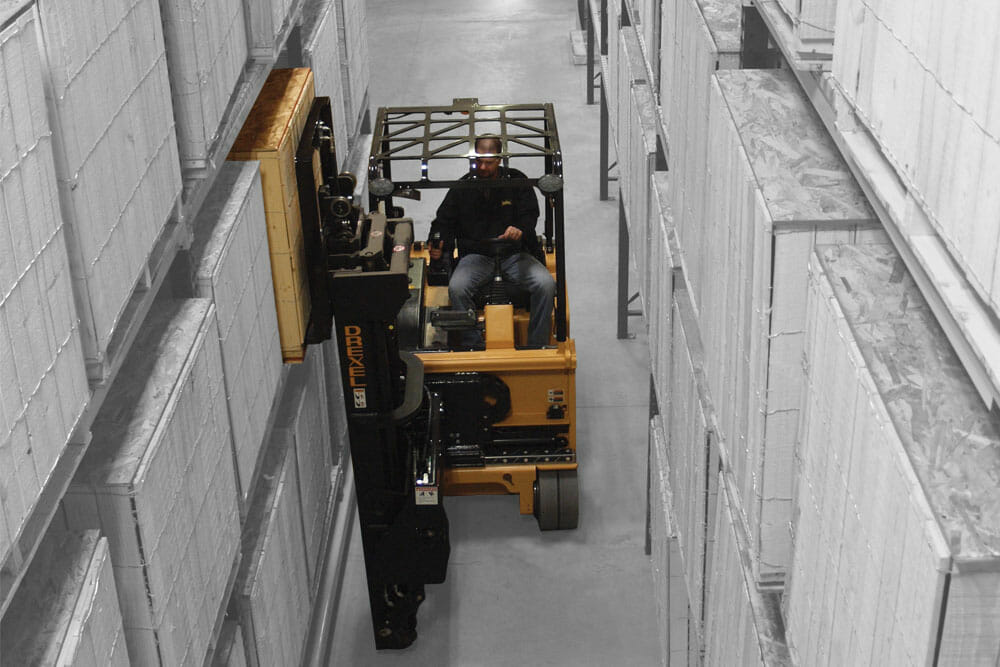

The SLT30AC and SLT35AC are 3-wheel front/side loading VNA forklifts with a single smooth rubber rear-drive/steer tire and solid poly-front load tires. The front mast rotates 90° and has side shift of 20” (508mm), allowing stacking easily in Very Narrow Aisles. Both models can work inside and outside on paved surfaces, can perform the jobs of a normal front-loading forklift (including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, push back rack, double deep and climbing steep ramps). The SLT range does the jobs of reach and counterbalanced trucks in aisles over 50% smaller. The rear steering and drive allow turning in short-cross aisles further increasing the storage density when compared to counterbalanced trucks.

  • Features
  • Specifications
  • Downloads

Exceptional Performance and Maneuverability

The SLT30AC and SLT35AC have fast lift/lower and travel speeds with a tight turning radius providing excellent maneuverability and productivity. The rollout battery compartment allows fast battery changes for multi-shift operations. High Visibility three and four stage masts are available for a wide range of applications including those with low overhead obstructions still requiring high lift heights. Wire Guidance is a standard option on this model allowing safe full-speed travel in the narrowest aisles.

Maximizes Material Handling Productivity

The versatile SLT30AC and SLT35AC forklifts replace conventional reach and counterbalanced forktrucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operate in very narrow aisles in warehouses, replacing reach and counterbalanced trucks that require much wider aisles. All tires on both models are 18″ (457mm) diameter and the truck has great underclearance for avoiding floor obstructions.

Other Features

  • 3,000 lb. (1361kg) and 3,500 lb. (1588kg) Capacity at 24″ (600mm) Load Center
  • Three-Wheel Design, Single Rear-Wheel Drive and Steering Provide Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Single Joystick Controls Hydraulic Functions, Directional Control, Horn and Wire Guidance
  • Electronic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • The Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse
  • An Electro/Mechanical Parking Brake is Automatically Applied When Power is Turned Off or the Operator Leaves the Seat

Other Features

  • High Visibility Mast Allows Optimum Safety and View of Loads and Forks
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Optional Cold Storage Conditioned to -22°F (-30°C)

Standard Equipment

  • Three-Wheel Configuration
  • Rear-Wheel Drive and Steering
  • High Visibility Mast (3 or 4-Stage)
  • 90° Pivoting and Shifting Mast
  • 48 Volt Electrical System
  • Single Joystick Control Lever
  • Adjustable Driver’s Seat (15° Swivel Seat)
  • Safety Seat Switch – Cuts Power
  • Seat Belts
  • Parking Brake, Electric, Mechanically Applied, Electrically Released
  • Hydraulic Service Front Wheel Brakes
  • AC Traction Control with Self-Diagnostics, Hour Meter and Battery Discharge Indicator with Lift Interrupt

Standard Equipment

  • AC Hydraulic Pump Control
  • Type “E” Construction
  • Electronic Power Steering
  • Automatic Return –to– Neutral
  • SB 350 Blue Battery Connector
  • Key Switch
  • Covered Battery Compartment
  • Battery Compartment Rollers
  • Cushion Rubber Drive Tire (1)
  • Polyurethane Load Tires (2)
  • Horizontal Fork Indicator
  • Overhead Guard
  • Load Backrest
  • Horn

Optional Equipment

  • Non-Standard Fork Lengths
  • Dual Overhead Guard-Mounted LED Headlights
  • Dual Rear Safety LED Light Bars
  • Safety Flashing LED Light
  • Backup Alarm – Beeping Tone (“Smart” dB Adjusting)
  • Fire Extinguisher – OHG Post Mounted
  • Cold Storage Conditioning to -22°F (-30°C)
  • Lazer Fork Height Indicator
  • Fork Positioner
  • Keyless Key Pad On-Off
  • Type EE Construction
  • Single Auxiliary Hydraulics
  • Landguide Wire Guidance

TECHNICAL DATA

Model SLT30AC DLT35AC
Capacity at 24" L/C
lbs/kg
3,000 / 1,361
3,500 / 1,588
Load Center
in/mm
24 / 600
24 / 600
Power Source
Battery, Electric 48V
Battery, Electric 48V
Weight with Battery
lbs/kg
13,225 / 5,999
13,550 / 6,146
Travel Speed
Loaded
mph/kph
6 / 9.7
6 / 9.7
Travel Speed
Unloaded
mph/kph
7 / 11.3
7 / 11.3
Lift Speed
Loaded
fpm/mpm
95 / 29
95 / 29
Lift Speed
Unloaded
fpm/mpm
110 / 33.5
110 / 33.5
Lower Speed
Loaded
fpm/mpm
80 / 24.4
80 / 24.4
Lower Speed
Unloaded
fpm/mpm
75 / 22.8
75 / 22.8
Mast Tilt
Fwd / Back
deg
3 / 4
3 / 4
Lost Load Center
A
with Triple Mast
in/mm
23 / 584
23 / 584
Wheelbase
B
in/mm
56 / 1,422
56 / 1,422
Overall Length to Fork Face
C
with Triple Mast
in/mm
89 / 2,260
89 / 2,260
Underclearance
D
in/mm
4.5 / 114
4.5 / 114
Cab Floor Height
E
in/mm
31 / 787
31 / 787
Seat Height
F
in/mm
50.75 / 1,289
50.75 / 1,289
Overhead Guard Height
G
in/mm
87 / 2,210
87 / 2,210
Chassis Width
H
in/mm
45.5 / 1,156
45.5 / 1,156
Mast Shift
I
in/mm
20 / 508
20 / 508
Side Reach
J
in/mm
3 / 76
3 / 76
Fork Carriage Width
K
in/mm
31 / 787
31 / 787
Turning Radius
L
in/mm
57 / 1,702
57 / 1,702
Standard Forks (ITA Class II)
in
40 x 4 x 1.5
40 x 4 x 1.5
Standard Forks (ITA Class II)
mm
1,016 x 101 x 38
1,016 x 101 x 38
Gradeability
Loaded
%
10
10
Lift Motor Rating
kWh
12
12
Steer Motor Rating
kWh
1.1
1.1
Wheel Sizes
Front (2 Each)
in
18 x 9 x 12.1
18 x 9 x 12.1
Wheel Sizes
Front (2 Each)
mm
457 x 229 x 307
457 x 229 x 307
Wheel Sizes
Rear (1 Each)
in
18 x 7 x 12.1
18 x 7 x 12.1
Wheel Sizes
Rear (1 Each)
mm
457 x 178 x 307
457 x 178 x 307
Control Type
Traction
AC
AC
Control Type
Hydraulic
AC
AC

MAST DIMENSIONS

M - LIFT HEIGHT (INCHES) M - LIFT HEIGHT (METERS) N - LOWERED HEIGHT (INCHES) N - LOWERED HEIGHT (METERS) O - **FREE LIFT (INCHES) O - **FREE LIFT (METERS) P - OVERALL HEIGHT (INCHES) P - OVERALL HEIGHT (METERS)
Mast Dimensions 3 Stage Full Free Lift
188
4.78
83
2.11
47
1.19
224
5.69
198
5.03
87
2.21
51
1.30
234
5.94
205
5.21
90
2.29
54
1.37
241
6.12
216
5.49
95
2.41
59
1.50
252
640
223
5.66
98
2.49
62
1.57
259
6.58
242
6.15
107
2.72
71
1.80
278
7.06
258
6.55
115
2.92
79
2.01
294
7.47
272
6.91
121
3.07
85
2.16
308
7.82
Mast Dimensions 4 Stage Full Free Lift
250
6.35
87
2.21
51
1.30
286
7.26
258
6.55
89
2.26
53
1.35
294
7.47
276
7.01
95
2.41
59
1.50
312
7.92
294*
7.47
101
2.57
65
1.65
330
8.38
312*
7.92
107
2.72
71
1.80
348
8.84
* Tilt Restricted to 1 degree Forward and 2 degrees Backward
** Free Lift Based on 36' (914mm) High Load Backrest
Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.

RECOMMENDED BATTERY

RECOMMENDED BATTERY
Battery Designation: 24-125-13, 48 Volt, 750 AHC (6 Hour Rate)
Battery Weight: Min. 2,750 lbs. (1,247kg) - Max. 3,300 lbs. (1,497kg)
Leads: Positions D, 24" (61cm) Long, with SB 350 Amp Blue Connector
Nominal Size: 38.25" x 20.75" x 30.56" (971 x 527 x 776mm)
Battery Compartment Inside Dimensions: 38.5" x 21.5" x 31.5" (978 x 546 x 800mm)
