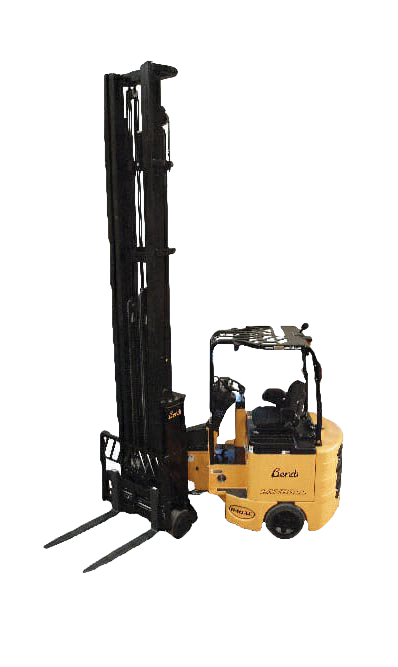

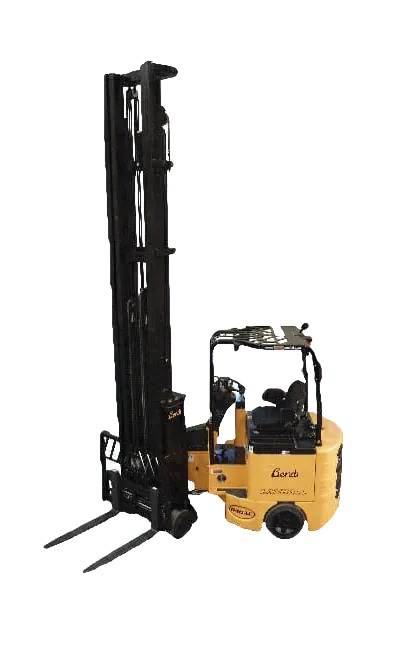

Bendi Rear Wheel Drive Narrow Aisle Multipurpose Electric Forklift

The Bendi model B40VAC works in aisles as narrow as *72″ (1.8M), has a basic capacity of 4,000 lbs. (1814 kg) at 24″ (600mm) load center and has lift heights available to 30′ (9.14M). This high-performance VNA Model has fast travel speeds and can climb steep ramps.

The Bendi B40VAC is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking, and power enable climbing steep ramps with loads. Three masts are available making this unit excellent for loading/unloading trailers and containers. The B40VAC can also work inside and outside on paved surfaces and has a floating front axle allowing the truck to ride smoothly over uneven floors. The Bendi B40VAC does all of the jobs of reach and counterbalanced trucks but in much narrower aisles.

Contact a Sales Rep
  • 4,000 lb. (1814kg) Capacity at 24″ (600mm) Load Center
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking, and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System
    Optional Cold Storage Conditioned to -22°F (-30°C)

Standard Specifications

  • 5,500 lb. (2,495kg) Capacity
  • Lift Heights to 360” (9.14M)
  • 84” (2.13M) Stacking Aisle with 48” (1,200mm) Long Load
  • High Visibility 3-Stage or 4-Stage Mast
  • Integral 11.2” (285mm) Stroke Side Shifter and 36” (914mm) High Load Backrest
  • Dual Inside / Outside Capability
  • Articulated Floating Front Axle, 48” (1,219mm) Wide
  • Large Diameter Smooth Rubber Drive Tires
  • Polyurethane Load Tires
  • 180° Front-End DuraSteer™ Articulation Steering Assembly with 5-Year Warranty
  • Heavy Duty Dual Rear Wheel Planetary Drives
  • AC Traction and Hydraulic Controllers
  • Powerful AC Drive and Hydraulic Motors
  • Comfortable Seated Operation with All Truck Controls in Easy Reach
  • Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter
  • Adjustable Cloth Suspension Swivel Seat
  • Armrest, Adjustable Steering Column, Key Switch, Horn and Seat Belt
  • Hydraulic Power Steering
  • 4-Post Heavy-Duty Overhead Guard
  • Safety Deadman Seat Switch
  • Heavy Duty Unitized Robotic Welded Chassis Design
  • Provisions for RF Terminals Provided
  • Accepts Class II Attachments
  • Easily Accessible Components for Low Cost Maintenance

Optional Equipment

  • Non-Standard Fork Lengths
  • LED Headlights, Flashing Light and Rear Safety Lights
  • Integral Side Shifting Fork Positioner
  • Auxiliary Hydraulics
  • Non-Marking Tires
  • UL 583, Type EE Electrical Rating, FM Approved
  • Vinyl Seat
  • Slide-Out Battery Tray
  • Fire Extinguisher
  • Lazer Fork Height Indicator
  • Carriage Mounted Camera with Operator Compartment Monitor
  • Capable of Freezer Operation to -22°F (-30°C)

TECHNICAL DATA

Model B40VAC
Capacity
at 24" (600mm) Load Center
lbs/kg
4,400 / 1,996
Weight
with Battery
lbs/kg
13,770 / 6,259 *
Travel Speed
Loaded
mph/kph
6.5 / 10.5
Travel Speed
Unloaded
mph/kph
7 / 11.3
Lift Speed
Loaded
fpm/mpm
90 / 27.4
Lift Speed
Unloaded
fpm/mpm
110 / 33.5
Lowering Speed
Loaded
fpm/mpm
100 / 30.5
Lowering Speed
Unloaded
fpm/mpm
90 / 27.4
Mast Tilt
Fwd / Back
deg
1 / 2
Lost Load Center
a
in/mm
11.6 / 294.6
Wheelbase
b
in/mm
72.6 / 1,844
Overall Length Fork to Face
c
in/mm
122.4 / 2,855
Underclearance
d
in/mm
3 / 76
Cab Floor Height
e
in/mm
31 / 787
Seat Height
f
in/mm
51 / 1,295
Overhead Guard Height
g
in/mm
89 / 2,261
Chassis Width
h
in/mm
48 / 1,219
Gradeability
Loaded / Unloaded
%
15 / 15
Hydraulic Motor Rating
Continuous Duty Rating
type/kWh
AC / 12
Traction Control Type
Induction
AC
Wheel Sizes
Front (2 Each) Poly - Dia. x Face
in/mm
14x8 / 36x20
Wheel Sizes
Rear (2 Each) Rubber - Dia. x Face
in/mm
18x9 / 46x23
Drive Motor Rating
Dual rear
type/kWh
5.6 ea - 11.2 Total
Front Articulation
m
deg
220

MAST DIMENSIONS

A - LIFT HEIGHT (Inches) A - LIFT HEIGHT (Meters) B - LOWERED HEIGHT (Inches) B - LOWERED HEIGHT (Meters) C - **FREE LIFT (Inches) C - **FREE LIFT (Meters)
197
5
96
2.44
57
1.44
236
6.00
110
2.80
71
1.80
281
7.15
125
3.18
86
2.18
323
8.20
148
3.77
109
2.77
354
9.00
159
4.04
120
3.04
374
9.50
166
4.20
126
3.20
394
10.00
173
4.40
134
3.40
417
10.60
183
4.64
143
3.64
*All Free Lift heights are stated with 100 CM high load backrest

AISLE DIMENSIONS

LOAD DEPTH X WIDTH MINIMUM CLEAR AISLE
40" X 48" (1,000 X 1,200mm)
66' (1,676mm)
48" X 40" (1,200 X 1,000mm)
72' (1,828mm)
Transfer or End Aisle
108'' (2,743mm)

RECOMMENDED BATTERY

Battery Designation: 24-85-19, 48 VOLT, 765 AHC (6 HOUR RATE)
Nominal Size: 25.9375'' x 44.5625'' x 22.625'' (66 x 133 x 58cm)
Truck Compartment Size: 26'' x 44.75'' x 23'' (66 x 114 x 58cm)
Battery Weight: Min. 2,600 lbs. (1,181kg) - Max. 3,100 lbs. (1,409kg)
Leads are at Position A, 12" (30.5cm) Long, with SB 350 Amp Blue Connector

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.
