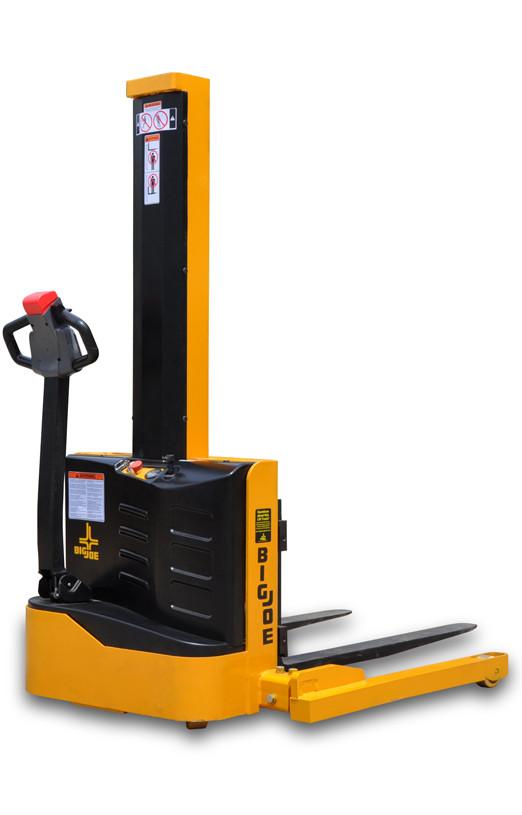

S22 Stacker

2,200lb. capacity featuring monomast construction and a 62″ lift height.

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

S22 Stacker - Features

  • 24volt Curtis transistor control
  • High-efficiency permanent magnet drive motor.
  • Adjustable straddles
  • Infinitely variable speed operation for tight turning in close quarters
  • Ergonomic handle with safety reversing switch and horn
  • Maintenance-free integral battery pack and 110volt charger
  • Battery discharge indicator, Emergency power disconnect
  • Key switch to limit access to approved personnel
Model Mast Lift Height Col. Height Free Lift Ext Height w/LBR ³Weight Chassis Only
2200 Capacity @ 24" Load Center ITA Class II Fork Carriage
S22-62
Mono
62
76.5
56
98.25
1200
S22-96
Two Stage
96
72.5
134
1450
S22-116
Two Stage
116
82.5
153.5
1500

³ Complete weight includes truck, battery and charger

Spec Sheet - English

S22-92 – Powered Drive Straddle Trucks

Electric Walkie Stacker daily Checklist

S22-92 – Powered Drive Straddle Trucks

Contact Us

Talk to a Big Joe specialist who can help find the best solution for your needs and budget.

April 6, 2021

S22-92

S22 Stacker 2,200lb. capacity featuring monomast construction and a 62″ lift height. An easy to use and maintain truck that is a good choice for general […]
April 6, 2021

S22-116

S22 – S22-R – Walkie Straddle Stacker S22 2,200lb. capacity standard model with maximum lift heights from 62″-116″. An easy to use and maintain truck that is […]
April 6, 2021

PDS25-130

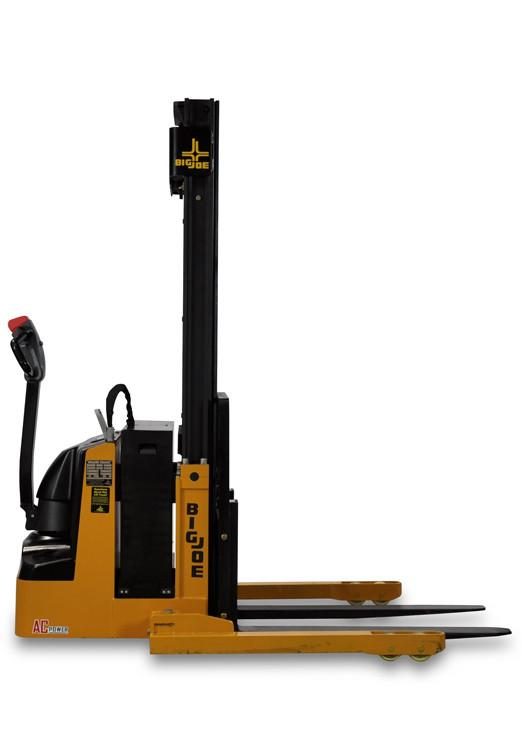

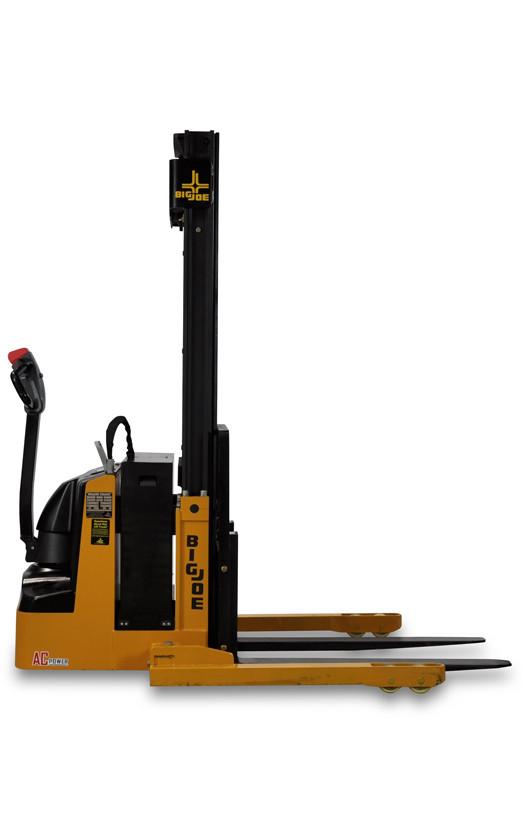

PDS25 – MEDIUM DUTY AC STRADDLE STACKEr 2,500lb. capacity models with lift heights to 157″ An easy to use and maintain truck that is a good […]
April 6, 2021

PDS30-157

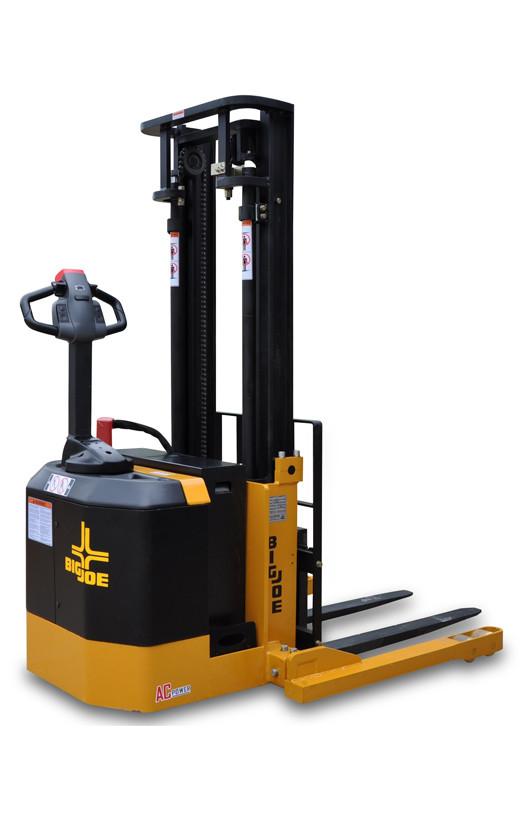

PDS-30/40 – Medium Duty AC Straddle Stacker 3,000lb and 4,000lb capacity models with lift heights to 177″ An easy to use and maintain truck that is […]
April 6, 2021
Big Joe Forklift

J1-126

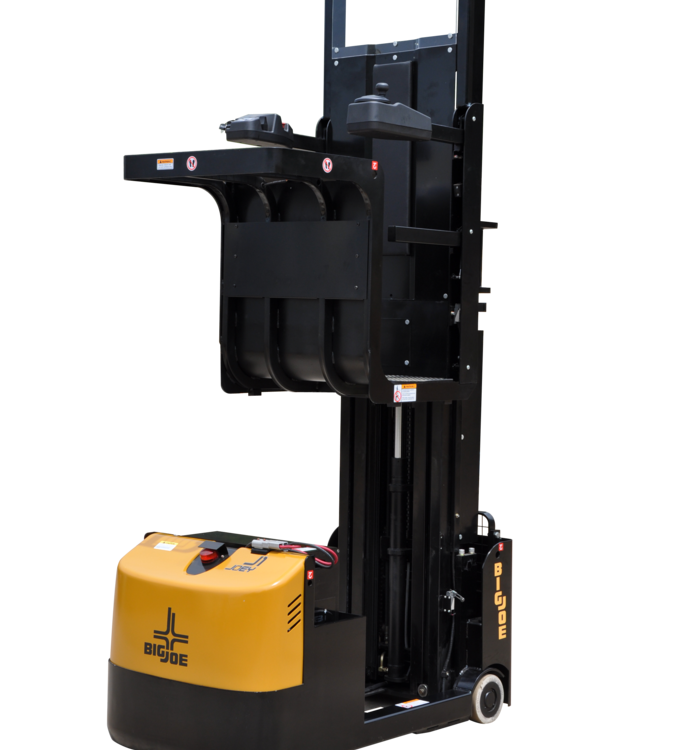

Choose the j1 joey for safer picking and higher productivity. The J1 “JOEY” Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers […]
