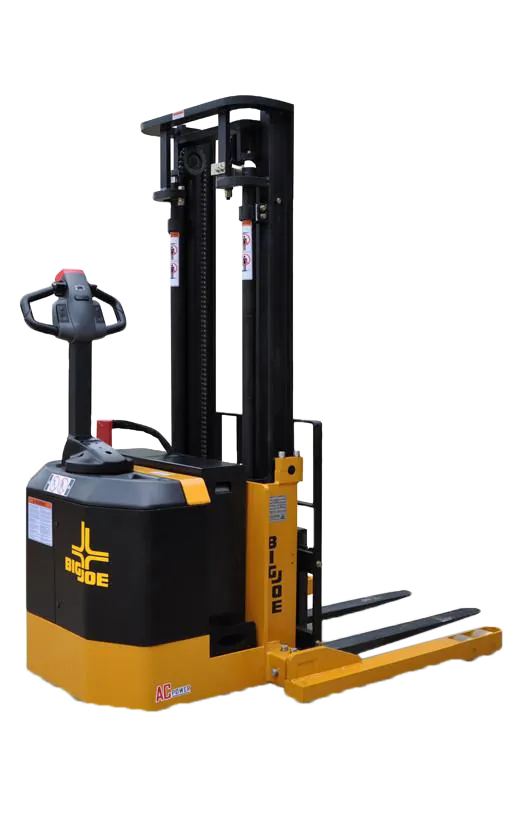

PDS-30/40 – Medium Duty AC Straddle Stacker

3,000lb and 4,000lb capacity models with lift heights to 177″

An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.

  • Features
  • Specifications
  • Downloads

PDS30/40 Features

• 24volt ZAPI transistor control

• High torque AC drive motor.

• Double reduction helical ZF GK10 transmission

• Shaft mounted electromechanical brake

• Creep speed operation for tight turning in close quarters

• Ergonomic handle with safety reversing switch and horn

• 224 AH Maintenace free battery pack

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel

Watch Product Video

Big Joe PDS Power Drive Straddle Trucks from Bill Pedriana on Vimeo.

PDS30/40 Specifications
Vehicle Type
Walkie Straddle Stackers
Capacity
3,000lbs./4,000lbs. @ 24” load center
Power
24 volt AC electric with ZAPI transistor control-inverter
Max Lift Height
Masts available up to 177"
Collapsed Height
Masts available as low as 71"
Fork Dimensions
42" L x 4" W x 1.5" Thick
Vehicle Dimensions
Consult brochure
Turning Radius
Consult brochure
Travel Speed
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment
26.37” x 9.06” x OPEN
Battery Capacity
224AH Maintenace free battery pack
Charger
Integral to pack, 110v plug-in

PDS30 Spec Sheet - English

PDS30-157 Medium Duty AC Straddle Stacker

ELECTRIC WALKIE STACKER DAILY CHECKLIST

PDS30-157 Medium Duty AC Straddle Stacker
