S22 Stacker

2,200lb. capacity featuring monomast construction and a 62″ lift height.

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

  • Features
  • Specifications
  • Downloads

S22 Stacker - Features

  • 24volt Curtis transistor control
  • High-efficiency permanent magnet drive motor.
  • Adjustable straddles
  • Infinitely variable speed operation for tight turning in close quarters
  • Ergonomic handle with safety reversing switch and horn
  • Maintenance-free integral battery pack and 110volt charger
  • Battery discharge indicator, Emergency power disconnect
  • Key switch to limit access to approved personnel
Model Mast Lift Height Col. Height Free Lift Ext Height w/LBR ³Weight Chassis Only
2200 Capacity @ 24" Load Center ITA Class II Fork Carriage
S22-62
Mono
62
76.5
56
98.25
1200
S22-96
Two Stage
96
72.5
0
134
1450

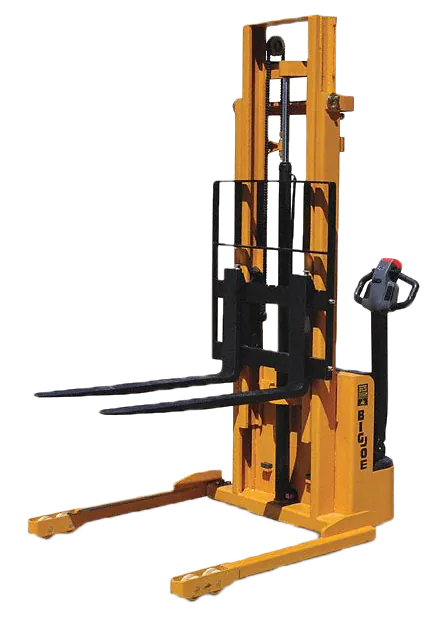

S22-116
Two Stage
116
82.5
0
153.5
1500

³ Complete weight includes truck, battery and charger

Spec Sheet - English

S22-92 – Powered Drive Straddle Trucks

Electric Walkie Stacker daily Checklist

S22-92 – Powered Drive Straddle Trucks
