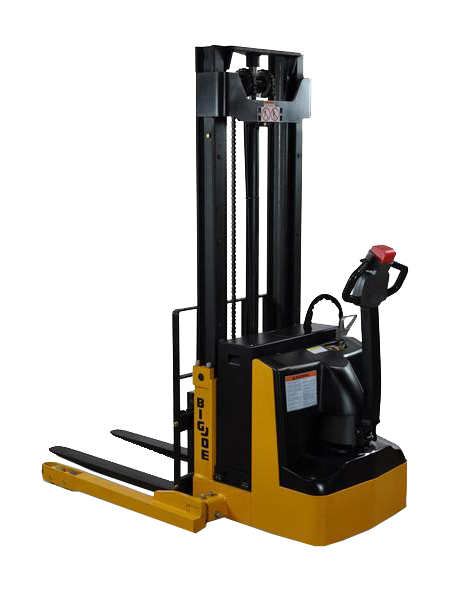

PDS25 – MEDIUM DUTY AC STRADDLE STACKEr

2,500lb. capacity models with lift heights to 157″

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

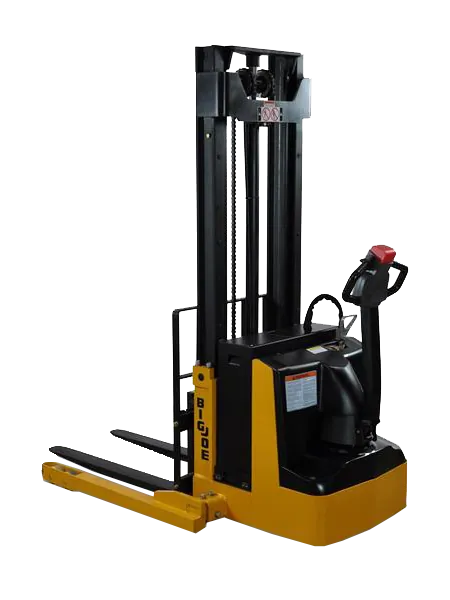

PDS25
  • Features
  • Specifications
  • Downloads

PDS25 Features

• 24 volt ZAPI transistor control

• High torque AC drive motor.

• Double reduction helical ZF GK10 transmission

• Shaft mounted electromechanical brake

• Creep speed operation for tight turning in close quarters

• Ergonomic handle with safety reversing switch and horn

• 224AH Maintenace free battery pack with integral charger

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel

Watch Product Video

Big Joe PDS Power Drive Straddle Trucks from Bill Pedriana on Vimeo.

PDS25 Specifications
Vehicle Type
Walkie Straddle Stackers
Capacity
2,500lbs. @ 24” load center
Power
24 volt AC electric with ZAPI transistor control-inverter
Max Lift Height
Masts available up to 157"
Collapsed Height
Masts available as low as 71"
Fork Dimensions
42" L x 4" W x 1.5" Thick
Vehicle Dimensions
64.5" OAL x 44" OAW
Turning Radius
60.7"
Travel Speed
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment
26.37” x 9.06” x OPEN
Battery Capacity
224AH Maintenance free battery pack
Charger
Integral to pack, 110v plug-in

PDS25 Spec Sheet - English

PDS25 Medium Duty AC Straddle Stacker
