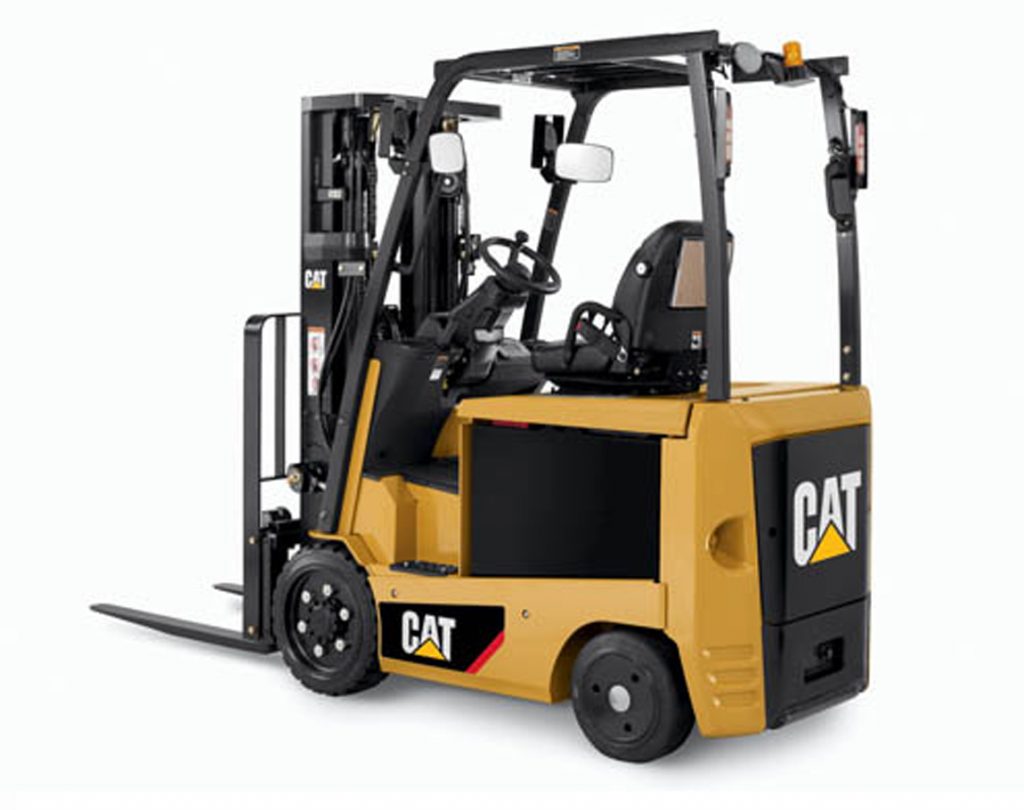

4,500 - 6,500 LB. CAPACITY ELECTRIC CUSHION TIRE LIFT TRUCKS

The EC23N-EC30LN series cushion tire lift truck combines the latest in operator ergonomics and advanced AC technology giving your operators the tools they need to drive your business forward.
2EPC7000-2EP11000 series

WATCH PRODUCT VIDEO

Recently re-engineered from the ground up, the EC23N-EC30LN provides 360º visibility, a spacious operator cabin and all-day comfort for the long haul, while the electric engine delivers increased efficiency and zero emissions at a lower cost.

PRODUCTIVITY

Exceptional Run Times

Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.
  • Advanced drive system – no brushes or commutator
  • All AC hydraulic system
  • Enhanced electric power steering
  • Adaptable Performance Modes

    Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.

    AWARENESS

    Operator Presence Detection System

    This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.

    Highly-Visible Orange Seat Belt

    Helps to clearly see when the operators are wearing their seat belt.

    ENERGY EFFICIENCY

    Regenerative Braking

    Activated when the lift truck decelerates, changes directions, or service brakes are applied, this feature helps to return energy to the battery. The result is extended run times and extended service brake life.
  • Improves battery life
  • Reduces brake wear
  • Minimizes heat build up
  • Two-Stage Hydraulic System

    Allows these cushion tire lift trucks to provide precise load handling, fast lift speeds and less energy consumption.

    ERGONOMICS

    Adjustable Full-Suspension Grammer® Seat

    The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible:
  • Front and back
  • Lumbar support
  • Suspension
  • Optional Fingertip Controls

    Effortlessly control the hydraulic function, horn and direction (Forward/Neutral/Reverse) with the optional seat-mounted armrest.

    Narrow Steering Column

  • Easy to operate
  • Tilt-adjustable
  • Full-hydrostatic steering
  • OPTIONS

    Special Application Packages

  • Two drive-in rack options to better fit different applications
  • Freezer for intermittent use below 14 degrees Fahrenheit
  • Electronic Back-up “Smart” Alarm

  • Ideal option for freezer and cold applications
  • Alarm automatically adjusts its volume level to suit the environment
  • Productivity Options

  • Foot direction control
  • Steering wheel knob
  • Rear grab handles with horn button
  • WATCH CUSTOMER REVIEW

    See how the Cat small electric cushion tire lift truck helps the automative industry keep moving from morning to night. One forklift driver, “didn’t want to get off of it.”

    MORE EFFICIENCY, LESS MAINTENANCE

    Special Application Packages

    The Lithium-ion battery package provides the highest performance battery solution.
  • High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency
  • No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output
  • No more battery change outs, watering and degassing areas
  • Maximize truck productivity through opportunity charging that can be interrupted anytime
  • 5-year battery warranty included
  • Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
    EC23N
    4,500
    276.4
    36/48
    82
    41.5
    88
    8,750
    EC25N
    5,000
    276.4
    36/48
    82
    41.5
    88
    9,100
    EC25EN
    5,000
    276.4
    36/48
    85.9
    41.5
    88
    9,300
    EC25LN
    5,500
    276.4
    36/48
    85.9
    43.5
    88
    9,650
    EC30N
    6,000
    276.4
    36/48
    88
    43.5
    88
    10,600
    EC30LN
    6,500
    276.4
    36/48
    88.8
    43.5
    88
    11,050

    1 Where applicable, does not reflect optional mast collapsed height or additional weight.
    2 Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

    Product Brochure - English

    EC23N – EC30LN Electric Cushion Tire Lift Trucks

    Product Brochure - Spanish

    EC23N – EC30LN Electric Cushion Tire Lift Trucks
