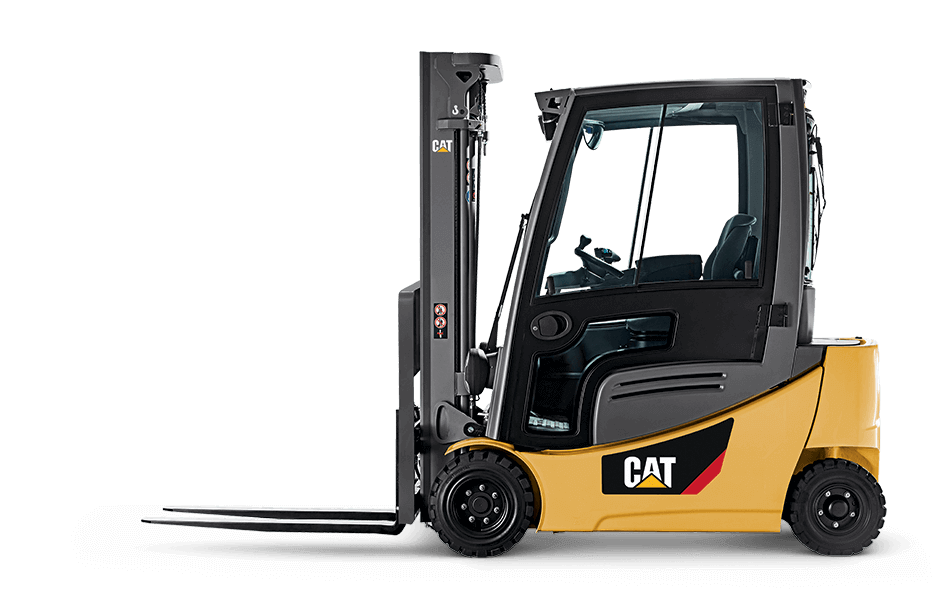

3,000 – 4,000 LB. CAPACITY ELECTRIC PNEUMATIC TIRE LIFT TRUCKS

The Class 1 EPC3000-EP4000 pneumatic tire electric small forklift series combines the latest in operator ergonomics, advanced AC control systems and customized performance.

  • Features
  • Specifications
  • Downloads

Productivity

Powerful AC Electrical System

Alternating current design optimizes productivity and energy efficiency, allowing this electric small forklift to run up to two shifts with one battery charge in many applications.

Full Color Display Panel

Easy-to-read high-definition display includes information on service icons, directional indicators and performance modes.

Selective Performance Modes

Five-level pre-programmed performance mode selector lets you adapt to various applications.

Durability

Sealed Components

Electric motors are protected to IP54 standards. Electro-magnetic brakes and short cables help protect components from dust and moisture, helping to minimize forklift downtime and extend service intervals.

Serviceability

Performance Customization

Exclusive and comprehensive servicing software allows the factory-trained technician the ability to perfectly match performance parameters to your application.

Awareness

Curve Control

Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

Visibility

Optimum visibility in all directions due to mast, overhead guard and counterweight design.

Operator Comfort

Electric Power Steering

Fully AC power steering provides significantly lower steering effort than a conventional steering system. The design of this class 1 forklift allows for ample leg room and can be adjusted in two planes – height and proximity – for optimum comfort and productivity.

Optional Controls

Solo-/Multi-Pilot controls help improve productivity in your operation. A travel directional switch and horn are conveniently integrated into the fingertip module.

Full Suspension Seat

The three-way adjustable full-suspension seat and fully-floating cab design help reduce shock and vibration.

More Efficiency, Less Maintenance

The Lithium-ion battery package provides the highest performance battery solution.
  • High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency



  • No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output



  • No more battery change outs, watering and degassing areas



  • Maximize truck productivity through opportunity charging that can be interrupted anytime



  • 5-year battery warranty included
Model Basic Capacity (lbs) Voltage (or Fuel Type) Maximum Fork Height2 Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
EPC3000
3,100
255
36/48
78.3
41.7
80.4
6,601/6,597
EP3000
3,100
255
36/48
82.6
41.7
80.4
6,537/6,503
EPC3500
3,490
255
36/48
78.3
44.1
80.4
6,964/6,906
EP3500
3,490
255
36/48
82.6
44.1
80.4
6,900/6,812
EP4000
3,880
255
36/48
82.6
44.1
80.4
7,253/7,175

1 Where applicable, does not reflect optional mast collapsed height or additional weight.
2 Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

Product Brochure - English

EPC3000-EP4000 Electric Pneumatic Tire Lift Trucks

Product Brochure - Spanish

EPC3000-EP4000 Electric Pneumatic Tire Lift Trucks
