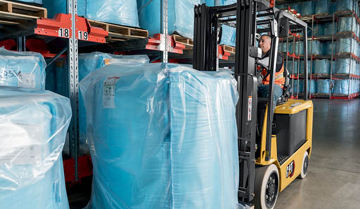

4,500 - 6,500 LB. CAPACITY ELECTRIC CUSHION TIRE LIFT TRUCKS

The EC23N-EC30LN series cushion tire lift truck combines the latest in operator ergonomics and advanced AC technology giving your operators the tools they need to drive your business forward.

  • Features
  • Specifications
  • Downloads

Watch Product Video

Recently re-engineered from the ground up, the EC23N-EC30LN provides 360º visibility, a spacious operator cabin and all-day comfort for the long haul, while the electric engine delivers increased efficiency and zero emissions at a lower cost.

Productivity

Exceptional Run Times

Work longer with up to two shifts on one battery charge without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking.

  • Advanced drive system – no brushes or commutator
  • All AC hydraulic system
  • Enhanced electric power steering

Adaptable Performance Modes

Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.

Awareness

Operator Presence Detection System

This integrated, computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.

Highly-Visible Orange Seat Belt

Helps to clearly see when the operators are wearing their seat belt.

Energy Efficiency

Regenerative Braking

Activated when the lift truck decelerates, changes directions, or service brakes are applied, this feature helps to return energy to the battery. The result is extended run times and extended service brake life.

  • Improves battery life
  • Reduces brake wear
  • Minimizes heat build up

Two-Stage Hydraulic System

Allows these cushion tire lift trucks to provide precise load handling, fast lift speeds and less energy consumption.

Ergonomics

Adjustable Full-Suspension Grammer® Seat

The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible:

  • Front and back
  • Lumbar support
  • Suspension

Optional Fingertip Controls

Effortlessly control the hydraulic function, horn and direction (Forward/Neutral/Reverse) with the optional seat-mounted armrest.

Narrow Steering Column

  • Easy to operate
  • Tilt-adjustable
  • Full-hydrostatic steering

Options

Special Application Packages

  • Two drive-in rack options to better fit different applications
  • Freezer for intermittent use below 14 degrees Fahrenheit

Electronic Back-up “Smart” Alarm

  • Ideal option for freezer and cold applications
  • Alarm automatically adjusts its volume level to suit the environment

Productivity Options

  • Foot direction control
  • Steering wheel knob
  • Rear grab handles with horn button

Watch Customer Review

See how the Cat small electric cushion tire lift truck helps the automative industry keep moving from morning to night. One forklift driver, “didn’t want to get off of it.”

More Efficiency, Less Maintenance

The Lithium-ion battery package provides the highest performance battery solution.

  • High performance batteries that are synchronized with the lift truck and charger for optimal energy efficiency



  • No maintenance requirements and a longer service life mean each truck offers more daily use, increased throughput and reliable 24/7 output



  • No more battery change outs, watering and degassing areas



  • Maximize truck productivity through opportunity charging that can be interrupted anytime



  • 5-year battery warranty included
Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
EC23N
4,500
276.4
36/48
82
41.5
88
8,750
EC25N
5,000
276.4
36/48
82
41.5
88
9,100
EC25EN
5,000
276.4
36/48
85.9
41.5
88
9,300
EC25LN
5,500
276.4
36/48
85.9
43.5
88
9,650
EC30N
6,000
276.4
36/48
88
43.5
88
10,600
EC30LN
6,500
276.4
36/48
88.8
43.5
88
11,050

1 Where applicable, does not reflect optional mast collapsed height or additional weight.
2 Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
