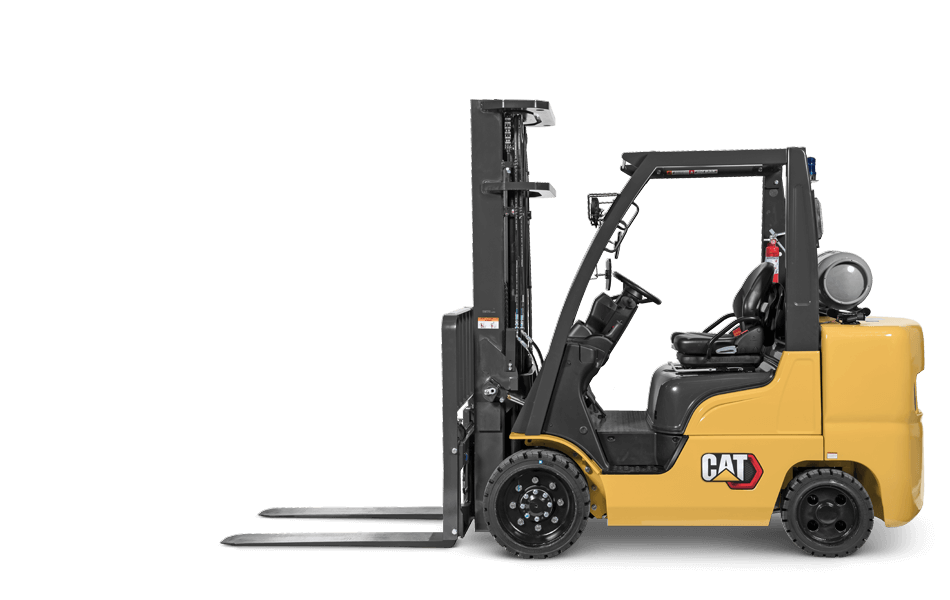

7,000 - 8,000 LB. CAPACITY INTERNAL COMBUSTION TIRE LIFT TRUCK

2C7000-2C8000 LP cushion tire model series delivers high levels of torque and horsepower while saving on fuel costs.

  • Features
  • Specifications
  • Downloads

Fuel Efficiency

K25 internal combustion engine

This powerful engine provides high levels of horsepower, while maintaining compliance with all CARB and EPA emissions regulations.

Electronic fuel injection system

Consisting of three control modules, constantly communicating with each other through its CAN (Controlled Area Network) system, the combustion process provides high levels of torque at lower RPM levels, saving in fuel consumption.

Fuel Saver Mode

This standard feature is easily activated by a toggle switch on the dashboard, saving on fuel costs without sacrificing the top travel speeds of the truck.

Uptime

Self-Diagnostics

The on-board display includes standard warnings and icons as well as provides immediate truck status, to help streamline the process of troubleshooting.

Effective Cooling System

The 10-blade fan, aluminum radiator, and bottom bypass air flow design improve air flow while the electronic engine protection and warning system monitor radiator fluid and transmission oil temperatures, helping prolong engine life.

Parking Brake Transmission Interlock

When the parking brake is engaged, the forklift is held in neutral to protect the brakes and transmission, reducing the chance for premature brake wear.

Maneuverability

Compact Chassis

The compact chassis allows the operator to efficiently maneuver in, out and around tight spaces.

Fully Hydrostatic Power Steering

The steering system enables maneuverability with less effort, helping to improve productivity.

Operator Comfort

Reduced Vibration

The floating powertrain rests on four rubber cushion dampeners that absorb vibration during operation.

Ergonomic Operator Compartment

The spacious cabin design with three-point access provides comfortable space for a wide range of operator sizes.

Full Suspension Vinyl Seat

The adjustable seat can be moved forward and backwards for different heights, suspension can be adjusted for different weights and lumbar support can be adjusted, keeping a wide range of operator sizes comfortable throughout the shift.

Awareness

Cushioned Stability Control

The rubber damper mounted between the steer axle and frame can improve increased lateral stability, enhancing operator confidence and overall driving experience in a maintenance-free system.

Standard Lights Package

With LED standard work lights mounted on the front of the overhead guard, operators have increased visibility to the area in front of the truck and through the mast to the fork tips, to operate with precision and efficiency.

Functional Steering Column

The steering column is combined with an open concept steering wheel that provides full visibility to the display. The operator can adjust the tilt column and use the memory feature to reposition the column in the prior tilt position in case the operator leaves the compartment.

Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
2C7000
7,000
122
LP / Gas
98.2
45.9
82.3
10,460
2C8000
8,000
122
LP / Gas
100
45.9
82.3
11,150

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

Product Brochure - English

2C7000-2C8000 LP CUSHION TIRE MODEL SERIES
