Home » Mitsubishi Forklifts » FD100N-FD160AN

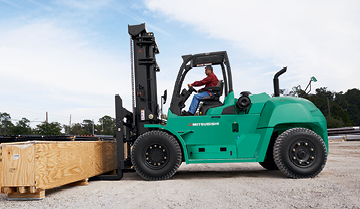

The heavy duty FD100N-FD160AN series delivers the power and performance needed for the most demanding material handling applications.
A 4.4L high performance four-cylinder twin turbo diesel engine delivers exceptional power with increased fuel efficiency.
This heavy-duty truck meets and exceeds all Tier 4 Final EPA requirements thanks to a maintenance-free SCR aftertreatment system.
The sequential turbo chargers produce a strong boost raising the engine power and performance while maintaining maximum torque at a wide rpm range.
The 3-speed robust transmission is matched with the powerful engine, providing optimal torque for all applications. The torque converter maintains peak torque and a smooth ride for different engine and transmission speeds resulting in maximum power with a reduction in fuel consumption.
The operator can monitor all critical systems via the LCD/LED display during operation to help reduce costs and the risk of excessive downtime.
Running a forklift that’s in need of maintenance can be costly. With the Engine Protection System, you can have confidence that your forklift operator will be warned if engine oil pressure, transmission fluid temperature and coolant temperatures need to be addressed.
Designed for harsh environments and rugged terrain, this Mitsubishi heavy duty truck frame is reinforced with steel plates for increased rigidity.
Simplified maintenance means less downtime and more time on the job. This forklift’s design makes accessing key components easy, and no tools are required to access the engine compartment – saving you valuable time and money.
Mitsubishi designed this forklift with extended service intervals in mind. 500-hour intervals mean reduced maintenance costs over the long haul.
Detects that the operator has their seat belt fastened. If not, the forklift will electronically lock-out powered travel movement and load handling functions. Additionally, a buzzer will sound and an icon on the display will further notify the operator.
Helps managers more easily identify whether an operator is wearing their seat belt.
LED lights have a longer lasting bulb life and more effectively light the work area. LED lights also have a longer operating life, reducing maintenance costs and downtime. The LED lights on the forklift are also covered under the standard warranty.
Designed with the operator in mind, the ultra-ergonomic fingertip armrest control provides precise load control with easy movement and comfortable hand positioning.
This seat helps reduce shock and vibration while optimizing comfort and productivity via 4-way adjustments, lumbar support, weight suspension and forward/backward adjustments.
For maximum operator comfort and protection from the elements, this forklift can be equipped with two cabin options: a fully-enclosed panel cabin and a wide cabin with these features:
| Model | Basic Capacity (lbs) | Length to Fork Face | Chassis Width (in) | Chassis Height (in)1 | Gross Weight (lbs)1 |
|---|---|---|---|---|---|
|
FD100N |
22,000 |
177 |
99 |
119 |
32,280 |
|
FD120N |
26,500 |
178 |
99 |
119 |
34,580 |
|
FD135N |
30,000 |
179 |
103 |
121 |
38,930 |
|
FD150AN |
33,000 |
191 |
103 |
121 |
40,230 |
|
FD160AN |
36,000 |
199 |
104 |
121 |
42,170 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
