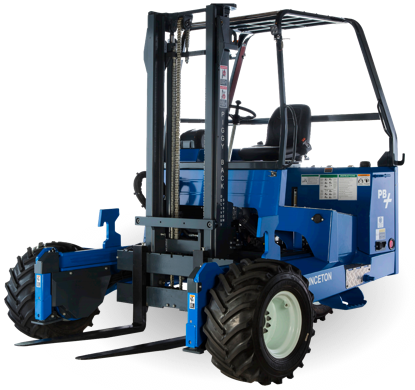

Princeton PiggyBack® PB55+

The advantages really add up with the PiggyBack PB55+. The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance.

Productivity

High-Performance

The PB55+ offers high horsepower, excellent ground clearance and Princeton’s exclusive Trac-Loc traction control system to tackle the roughest job sites. An optional brick & block package makes handling cubed products easier on a job site.

Durability

Ideal for Construction Site Delivery

The 5,500 lb capacity PB55+ is the hands down favorite choice of the brick, block, and paver industries. It’s rugged design, center seating make it ideal for most construction site delivery applications.

Technical Specifications
MODEL:
PB55+
TYPE:
Standard
CAPACITY @ 24” LOAD CENTER:
5500 lbs
DIESEL ENGINE:
56 HP
ENGINE EMISSION COMPLIANCE:
EPA Tier4 Final
MAXIMUM RPM:
2700 RPM
ELECTRICAL SYSTEM:
12 Volt
DRIVE WHEELS:
3
STEERING:
Hydrostatic
TIRE TYPE:
31 x 15.5 - 15 8-Ply (TG)
31 x 15.5 - 15 8-Ply (TG)
TIRE OUTSIDE DIAMETER (FRONT/REAR):
31" / 31"
TIRE WIDTH (FRONT/REAR):
15.5" / 15.5"
MAXIMUM SPEED:
7 mph
MAXIMUM GRADABILITY:
30%
TURNING RADIUS:
86"
UNLADEN WEIGHT:
6280 lbs
UNLADEN WEIGHT (OPTIONAL):
6400 lbs
WORKING PRESSURE (ATTACHMENTS):
2500 psi
TILT OF MAST (FORWARD/BACKWARD):
10° / 8°
SIDESHIFT:
5"
FORK SECTION:
45 x 4 x 1.75"
MAST CARRIAGE TRAVEL:
25"
HEIGHT TO TOP OF CANOPY:
101"
FORK CARRIAGE WIDTH (CLASS):
48.25" (II)
FRAME OPENING:
57.75"
OVERALL WIDTH:
101"
OVERHANG:
80"
WHEELBASE:
77.5"
CENTER OF GRAVITY (FROM FORK FACE):
26.5"
LIFT HEIGHT:
120" / 144"
MAST HEIGHT - COLLAPSED:
97.25" / 109.25"
MAST HEIGHT - RAISED:
157" / 181"
GROUND CLEARANCE:
11"
FACE OF FORK TO CENTER OF FRONT TIRE:
9"
ANSI STANDARD:
B56.14

The above specifications are not binding upon the manufacturer and may be changed without prior notice.

High Torque Transmission (HTT) option available – increases torque by 30%*

Weights may vary, depending on tire and/or fork options

*HTT equipped models will have a reduced maximum ground speed

Product Brochure

Princeton PiggyBack® PB55+

Contact Us

Talk to a Princeton Delivery Systems specialist who can help find the best solution for your needs and budget.

April 1, 2021

PB55+

Princeton PiggyBack® PB55+ The advantages really add up with the PiggyBack PB55+. The new PB+ series machines have been redesigned with new features on the inside […]
April 1, 2021

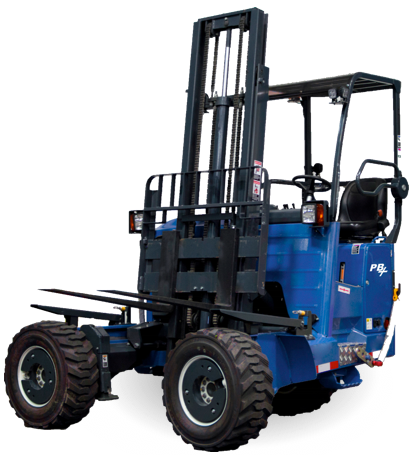

PB55+ 4-Way

Princeton PiggyBack® PB55+ 4-Way The 5,500 lb. capacity PiggyBack® PB55+ 4-Way offers the most versatility in truck-mounted forklifts. Contact a Sales Rep Features Specifications Downloads Productivity […]
April 1, 2021

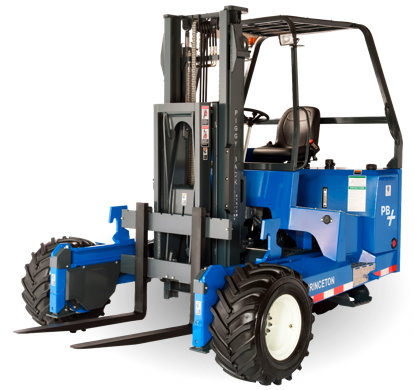

PB55X+

Princeton PiggyBack® PB55X+ The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify […]
April 1, 2021

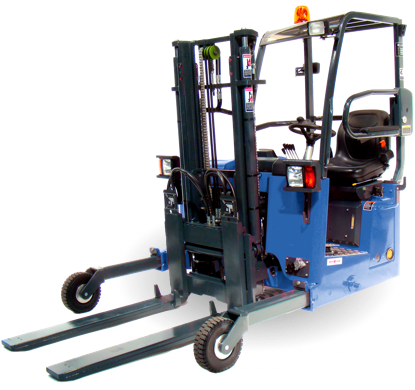

PB36

Princeton PiggyBack® PB36 The Princeton PB36 fits on Single Axle Delivery Trucks! Introducing the brand new upgrade to the tried and true PiggyBack Z1 – The […]
April 1, 2021

PB45 STM

Princeton PiggyBack® PB45 STM Perhaps the biggest news with the new PB45 STM is the all new, technologically advanced, Tier 4 Final compliant engine. Contact a […]
April 1, 2021

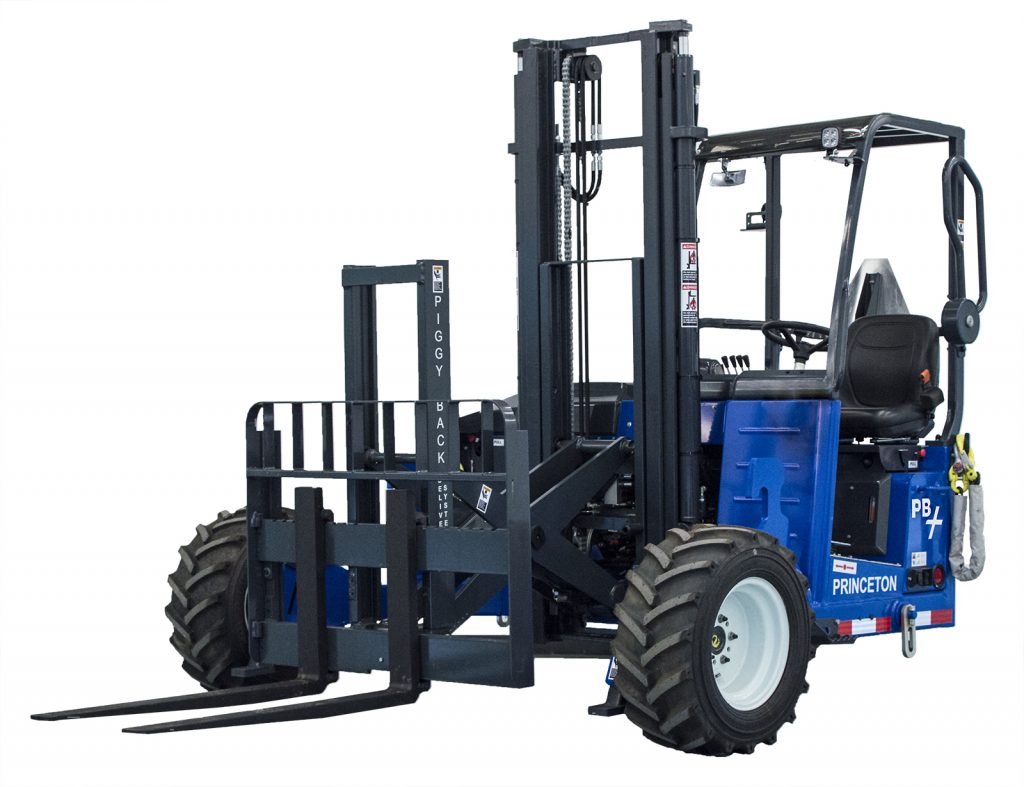

PB45 Turfmate
