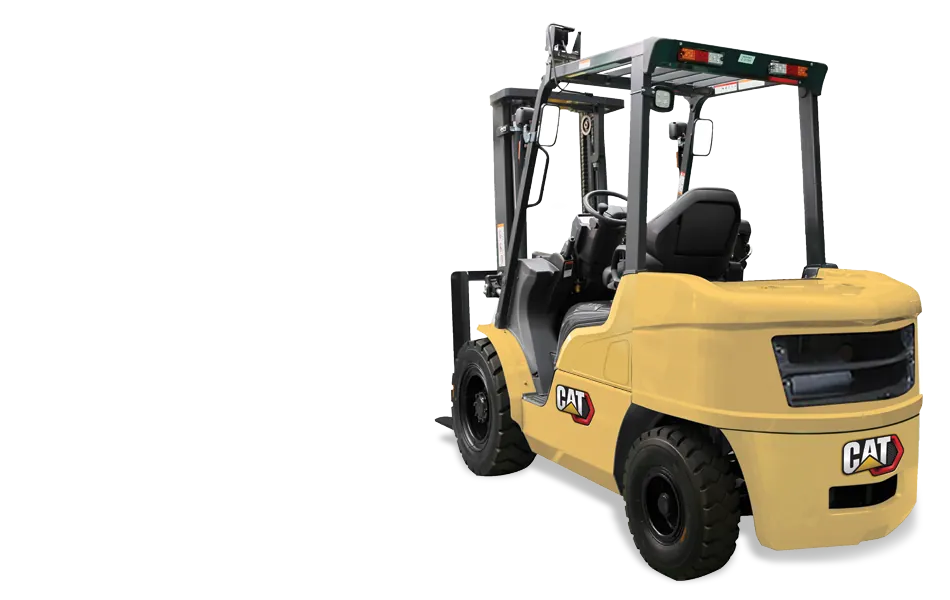

3,000 – 7,000 Lb. Capacity Internal Combustion CAT® Pneumatic-Tire Lift Trucks
Talk to G&W about the GP15PT – GP35PT / DP15PT – DP35PT forklifts, with the lifting capacity of 3,000 – 7,000 lbs. These Caterpillar lift trucks are built to work hard, with a combination of dependable performance and rugged durability.
Power
CAT lift trucks from G&W offer the features you need to increase productivity.
Engine
This truck series offers several powerful engine options such as the new GK21 / GK25 Gas/LP engines and the S4Q2 / S4S Diesel engines. These engines achieve a significant reduction in fuel consumption by the combination of new transmission and optimal control of accelerator as well as throttle opening with the newly installed wheel spin suppression adaptation function.The enhanced performance of these CAT engines provides reliable operation in the toughest conditions. You also get the power needed to enhance productivity, while meeting the emissions standards of the EPA.
Air Intake System
This is one of the most important features for engine performance. It helps to provide the engine with free of debris clean air. The air intake openings are positioned at the top of the rear overhead guard levels to minimize the chances of contaminates from entering the system. This element can be easily replaced without the use of tools.
Fully Floating Powertrain
This has a one-speed forward and reverse transmission that maximizes gradeability and travel speed, minimizes noise and vibration, and uses maintenance-free gears to reduce running costs.
Ergonomics
For rugged reliability, a CAT forklift delivers.
Full Suspension seat
Offered as a standard on this truck, the full suspension seat is an ergonomic design built to provide first class comfort with several adjustments for operator comfort during long shifts. This seat also comes standard with an orange seatbelt that is easily visible from a distance.This CAT forklift monitors engine oil pressure along with transmission fluid and coolant temperatures to protect the system from damage. Operators are kept informed through the display if critical levels are reached.
Noise Reduction Features
There are a multitude of features that are built into the truck that limit noise and vibration. This helps to keep the operator comfortable while controlling the truck to increase productivity. These features include rubber mounted key components to isolate noise and vibration to the steel frame, insulated engine hood, and closed wheel wells to reduce noise from the engine.
Three Point Secure Entry and Exit
This allows for the operator to easily get on and off the truck. The operator can be in and out with little effort with a consistent and efficient method. The three point entry system on this truck includes an elongated grab bar, a wide boarding step, and a hip restraint.
Durability
CAT offers durability you can count on.
Durable Steel Frame
The frame is designed using finite element analysis which minimizes stress points on the truck. This maximizes durability while maintaining a lower center of gravity in order to keep higher residual capacity for the truck.
Overhead Guard
The overhead guard is built to help ensure the stress points are kept to a minimum. The design is built for operator awareness, comfort and visibility. The top of the overhead guard does not use horizontal stability bars but instead vertical to allow the operator to have full visibility when looking up. It is also built using a welded one-piece design instead of a bolt together system to increase reliability and durability.
Easy Maintenance
These trucks are designed for easy routine maintenance, reducing costs and downtime. Clear access to major components, including an engine cover that opens fully, makes fluid checks and pre-shift inspections faster. The welded, one-piece overhead guard minimizes stress points for added durability, while its vertical bar design improves operator comfort, awareness, and upward visibility.
Operator Awareness
Get the awareness features you need in a Caterpillar forklift.
Presence Detection System
The Presence Detection System (PDS) activates when the operator does not fasten the seat belt during operation or leaves the normal operating position without activating the parking brake. This computer-based feedback system uses both audible and visual indicators to alert the operator to potentially hazardous situations, while increasing operator awareness.
Mast Visibility
Narrow mast channels provide wide visibility from the tip of the forks to the top of the mast for the operator while seated in the normal operating position. The carriage is designed to create ample space in-between the fork bars.The bright orange color can be easily seen from a distance, so you can clearly see when operators are properly wearing their seat belt.
Premium Color Display
This new color display provides important indicators and information to the operator. These are crucial in order to know how the truck is currently running and if there are any issues that need to be addressed. The central location of this display makes it easy for the operator to have visibility of these indicators at all times.LED work lights burn longer and brighter as compared to traditional halogen or incandescent lights, resulting in significant maintenance savings over the long run. Lights are also covered under the standard CAT warranty.
| Model | Basic Capacity (lbs) | Maximum Fork Height2 | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in)1 | Gross Weight (lbs)1 |
|---|---|---|---|---|---|---|---|
|
DP15PT |
1,500 |
3000 |
Diesel |
2,260 |
1065/1480 |
2065 |
2530 |
|
DP18PT |
1,750 |
3000 |
Diesel |
2,300 |
1065/1480 |
2065 |
2720 |
|
DP20CPT |
2,000 |
3000 |
Diesel |
2,355 |
1065/- |
2065 |
3030 |
|
DP20PT |
2000 |
3000 |
Diesel |
2485 |
1150/1640 |
2074 |
3380 |
|
DP25PT |
2,500 |
3000 |
Diesel |
2,560 |
1150/1640 |
2074 |
3680 |
|
DP30PT |
3,000 |
3000 |
Diesel |
2,735 |
1275/1710 |
2093 |
4350 |
|
DP35PT |
3,500 |
3000 |
Diesel |
2,795 |
1290/1710 |
2103 |
4740 |
|
GP15PT |
1500 |
3000 |
Gas / LPG |
2260 |
1065/- |
2065 |
2490 |
|
GP18PT |
1,750 |
3000 |
Gas / LPG |
2,300 |
1065/- |
2065 |
2690 |
|
GP20CPT |
2,000 |
3000 |
Gas / LPG |
2,355 |
1065/- |
2065 |
3010 |
|
GP20PT |
2,000 |
3000 |
Gas / LPG |
2,485 |
1150/1640 |
2074 |
3300 |
|
GP20PTH |
2,000 |
3000 |
Gas / LPG |
2,485 |
1150/1640 |
2074 |
3300 |
|
GP25PT |
2,500 |
3000 |
Gas / LPG |
2,560 |
1150/1640 |
2074 |
3600 |
|
GP25PTH |
2,500 |
3000 |
Gas / LPG |
2,560 |
1150/1640 |
2074 |
3600 |
|
GP30PT |
3,000 |
3000 |
Gas / LPG |
2,735 |
1275/1710 |
2093 |
4240 |
|
GP35PT |
3,500 |
3000 |
Gas / LPG |
2,795 |
1290/1710 |
2103 |
4630 |
1 Where applicable, does not reflect optional mast collapsed height or additional weight.
2 Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
