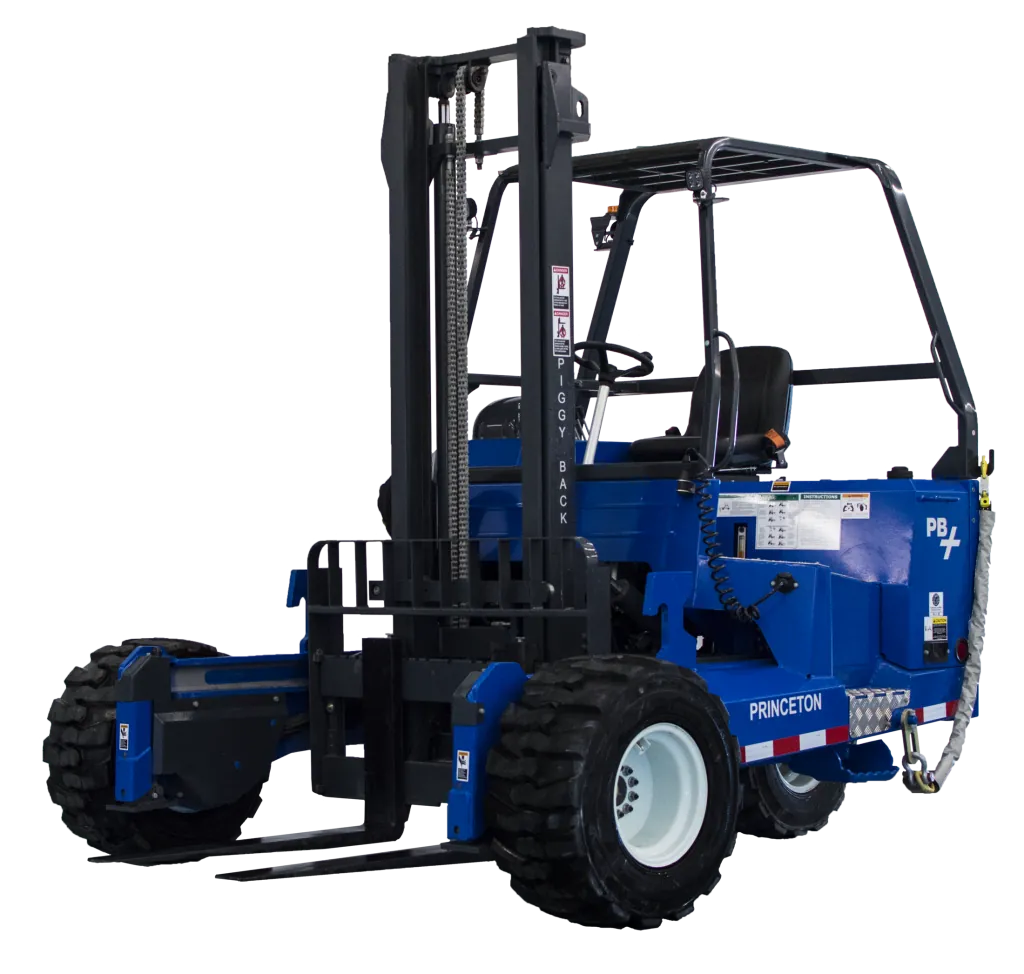

Princeton PiggyBack® PB80+

The advantages really add up with the PiggyBack PB80+. The 8,000 lb. capacity PB80+ is designed for those who handle heavy products, or just simply need to handle more product at one time. The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance.

  • Features
  • Specifications
  • Downloads

Versatility

Optional Package

As with the PB55+, a drywall handling package is optional.

Durability

Wide Load Support

This package features load support arms that provide added support a wide loads when traveling on rough terrain.

Safety

Center Seating

Also, like the PB55+, the PB80+ offers center seating to assure that your operator has a clear view of not only the load but also both front tires. This enables the operator to both position the load more accurately anywhere on the job site and minimize the chance of running over unforeseen obstacles.

Applications

Designed to Handle Heavy Products

Drywall, General Building Materials, Lumber, Moving & Storage

MODEL:
PB80+
TYPE:
Standard
CAPACITY @ 24” LOAD CENTER:
8000 lbs
DIESEL ENGINE:
56 HP
ENGINE EMISSION COMPLIANCE:
EPA Tier4 Final
MAXIMUM RPM:
2700 RPM
ELECTRICAL SYSTEM:
12 Volt
DRIVE WHEELS:
3
STEERING:
Hydrostatic
TIRE TYPE:
31 x 15.5 - 15 12-Ply (RT)
31 x 15.5 - 15 12-Ply (RT)
TIRE OUTSIDE DIAMETER (FRONT/REAR):
31" / 31"
TIRE WIDTH (FRONT/REAR):
15.5" / 15.5"
MAXIMUM SPEED:
7 mph
MAXIMUM GRADABILITY:
30%
TURNING RADIUS:
91"
UNLADEN WEIGHT:
6970 lbs
WORKING PRESSURE (ATTACHMENTS):
2500 psi
TILT OF MAST (FORWARD/BACKWARD):
10° / 8°
SIDESHIFT:
5"
FORK SECTION:
45 x 4 x 2"
MAST CARRIAGE TRAVEL:
27"
HEIGHT TO TOP OF CANOPY:
101"
FORK CARRIAGE WIDTH (CLASS):
48.25" (III)
FRAME OPENING:
57.75"
OVERALL WIDTH:
101"
OVERHANG:
80"
WHEELBASE:
83.5"
CENTER OF GRAVITY (FROM FORK FACE):
27"
LIFT HEIGHT:
144"
MAST HEIGHT - COLLAPSED:
109.25"
MAST HEIGHT - RAISED:
181"
GROUND CLEARANCE:
11"
FACE OF FORK TO CENTER OF FRONT TIRE:
9"
ANSI STANDARD:
B56.14

The above specifications are not binding upon the manufacturer and may be changed without prior notice.

Weights may vary, depending on tire and/or fork options
