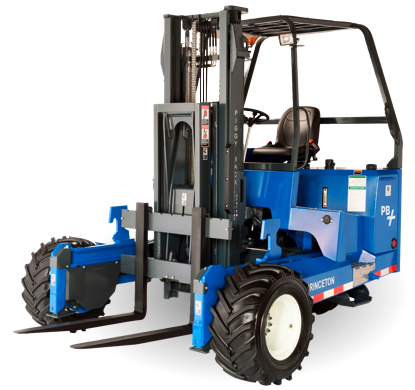

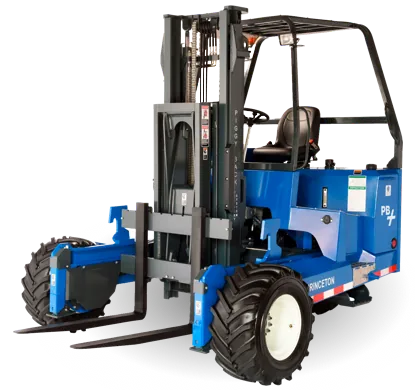

Princeton PiggyBack® PB55X+

The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance.

  • Features
  • Specifications
  • Downloads

Productivity

Unload From One Side

The 5,500 lb. capacity PB55X+ is the first unit in the industry equipped with a standard “Double Reach” feature. This unique feature, which adds an extending scissors reach system to the standard moving mast, doubles the length of the reach of the PB55X+ across the bed. With the PB55X+, your driver now can unload an entire truck or trailer from one side, even from positions where tanks or tandems are located.

Capabilities

Applications

Brick, Block & Pavers, Drywall, General Building Materials, Lumber, Roofing

Technical Specifications
MODEL:
PB55X+
TYPE:
Pantograph
CAPACITY @ 24” LOAD CENTER:
5500 lbs
DIESEL ENGINE:
56 HP
ENGINE EMISSION COMPLIANCE:
EPA Tier4 Final
MAXIMUM RPM:
2700 RPM
ELECTRICAL SYSTEM:
12 Volt
DRIVE WHEELS:
3
STEERING:
Hydrostatic
TIRE TYPE:
31 x 15.5 - 15 8 12-Ply (TG)
31 x 15.5 - 15 8-Ply (TG)
TIRE OUTSIDE DIAMETER (FRONT/REAR):
31" / 31"
TIRE WIDTH (FRONT/REAR):
15.5" / 15.5"
MAXIMUM SPEED:
7 mph
MAXIMUM GRADABILITY:
30%
TURNING RADIUS:
91"
UNLADEN WEIGHT:
7190 lbs
UNLADEN WEIGHT (OPTIONAL):
7240 lbs
WORKING PRESSURE (ATTACHMENTS):
2500 psi
TILT OF MAST (FORWARD/BACKWARD):
10° / 8°
SIDESHIFT:
5"
FORK SECTION:
45 x 4 x 2"
MAST CARRIAGE TRAVEL (REACH):
27" (48")
HEIGHT TO TOP OF CANOPY:
101"
FORK CARRIAGE WIDTH (CLASS):
48.25" (III)
FRAME OPENING:
57.75"
OVERALL WIDTH:
101"
OVERHANG:
86"
WHEELBASE:
83.5"
CENTER OF GRAVITY (FROM FORK FACE):
30"
LIFT HEIGHT:
120" / 144"
MAST HEIGHT - COLLAPSED:
97.25" / 109.25"
MAST HEIGHT - RAISED:
185" / 211"
GROUND CLEARANCE:
11"
FACE OF FORK TO CENTER OF FRONT TIRE:
9"
ANSI STANDARD:
B56.14

The above specifications are not binding upon the manufacturer and may be changed without prior notice.

High Torque Transmission (HTT) option available – increases torque by 30%*

Weights may vary, depending on tire and/or fork options

*HTT equipped models will have a reduced maximum ground speed
