Home » Piggy-Back Forklifts » PB55+

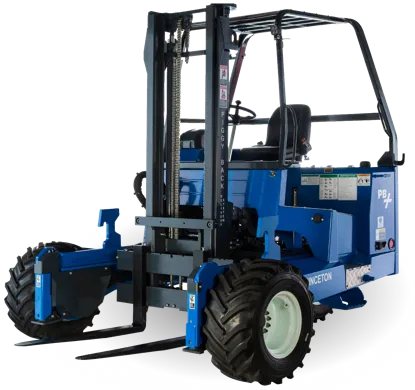

The advantages really add up with the PiggyBack PB55+. The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance.
The PB55+ offers high horsepower, excellent ground clearance and Princeton’s exclusive Trac-Loc traction control system to tackle the roughest job sites. An optional brick & block package makes handling cubed products easier on a job site.
The 5,500 lb capacity PB55+ is the hands down favorite choice of the brick, block, and paver industries. It’s rugged design, center seating make it ideal for most construction site delivery applications.
| Technical Specifications | |
|---|---|
|
MODEL: |
PB55+ |
|
TYPE: |
Standard |
|
CAPACITY @ 24” LOAD CENTER: |
5500 lbs |
|
DIESEL ENGINE: |
56 HP |
|
ENGINE EMISSION COMPLIANCE: |
EPA Tier4 Final |
|
MAXIMUM RPM: |
2700 RPM |
|
ELECTRICAL SYSTEM: |
12 Volt |
|
DRIVE WHEELS: |
3 |
|
STEERING: |
Hydrostatic |
|
TIRE TYPE: |
31 x 15.5 - 15 8-Ply (TG) 31 x 15.5 - 15 8-Ply (TG) |
|
TIRE OUTSIDE DIAMETER (FRONT/REAR): |
31" / 31" |
|
TIRE WIDTH (FRONT/REAR): |
15.5" / 15.5" |
|
MAXIMUM SPEED: |
7 mph |
|
MAXIMUM GRADABILITY: |
30% |
|
TURNING RADIUS: |
86" |
|
UNLADEN WEIGHT: |
6280 lbs |
|
UNLADEN WEIGHT (OPTIONAL): |
6400 lbs |
|
WORKING PRESSURE (ATTACHMENTS): |
2500 psi |
|
TILT OF MAST (FORWARD/BACKWARD): |
10° / 8° |
|
SIDESHIFT: |
5" |
|
FORK SECTION: |
45 x 4 x 1.75" |
|
MAST CARRIAGE TRAVEL: |
25" |
|
HEIGHT TO TOP OF CANOPY: |
101" |
|
FORK CARRIAGE WIDTH (CLASS): |
48.25" (II) |
|
FRAME OPENING: |
57.75" |
|
OVERALL WIDTH: |
101" |
|
OVERHANG: |
80" |
|
WHEELBASE: |
77.5" |
|
CENTER OF GRAVITY (FROM FORK FACE): |
26.5" |
|
LIFT HEIGHT: |
120" / 144" |
|
MAST HEIGHT - COLLAPSED: |
97.25" / 109.25" |
|
MAST HEIGHT - RAISED: |
157" / 181" |
|
GROUND CLEARANCE: |
11" |
|
FACE OF FORK TO CENTER OF FRONT TIRE: |
9" |
|
ANSI STANDARD: |
B56.14 |
The above specifications are not binding upon the manufacturer and may be changed without prior notice.
High Torque Transmission (HTT) option available – increases torque by 30%*
Weights may vary, depending on tire and/or fork options
*HTT equipped models will have a reduced maximum ground speed
