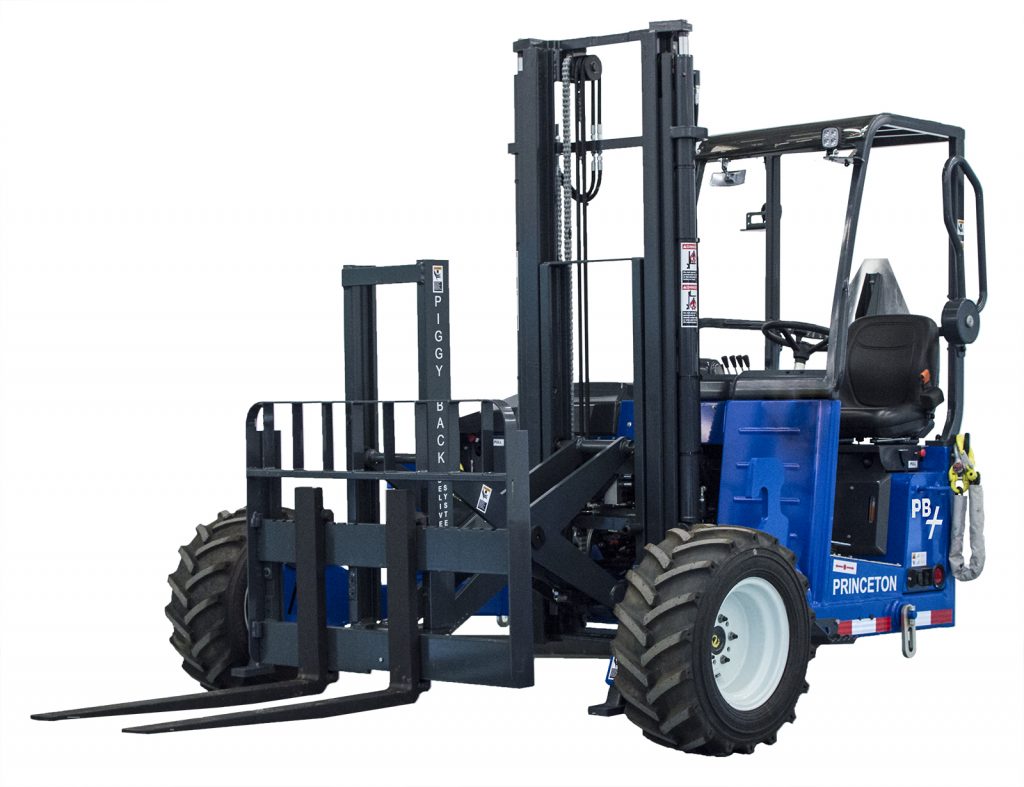

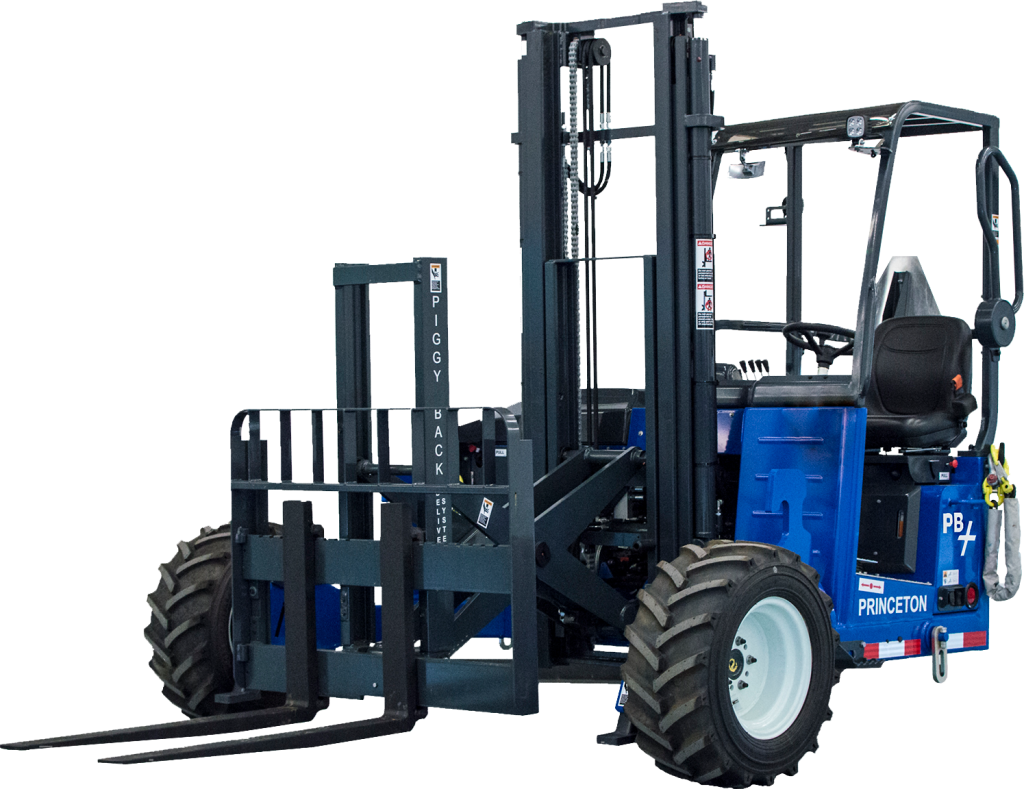

Princeton PB45 Turfmate

The PB45 Turfmate can streamline your turf delivery operation. For years, the Princeton has been the preferred truck mounted forklift for the turf industry. As the needs of the industry have evolved, so has the PiggyBack forklift. Through continued customer feedback and design advances, the all-new Princeton PB45 Turfmate has been designed to better serve both the customer and the operator as the new solution.

  • Features
  • Specifications
  • Downloads

Productivity

Applications

Sod

Powerful

The PB45 Turfmate is incredibly powerful, yet light enough to be mounted onto a truck or trailer, quickly dismount at the job site and be ready to work in less than a minute. With a lift capacity of 4,500 pounds, a powerful Tier4 Final compliant engine, and all wheel drive, the PB45 Turfmate can streamline your turf delivery operation.

Details

Specifically Designed for Turf Industry

The PB45 Turfmate offers quick ground speed, nearly a foot of ground clearance, a more spacious operator compartment, and many other features that are specifically designed to perfectly serve the turf industry. A more efficient hydraulic system requires less horsepower to operate, improves fuel efficiency, increases hydraulic speed, generates less heat, and is quieter than other truck mounted forklifts.

Technical Specifications
MODEL:
PB45 Turfmate
TYPE:
STM
CAPACITY @ 24” LOAD CENTER:
4500 lbs
DIESEL ENGINE:
25 HP
ENGINE EMISSION COMPLIANCE:
EPA Tier 4 Final
MAXIMUM RPM:
3000 RPM
ELECTRICAL SYSTEM:
2700 RPM
ELECTRICAL SYSTEM:
12 Volt
DRIVE WHEELS:
3
STEERING:
Hydrostatic
TIRE TYPE:
29 x 12.5 - 15, 8-Ply (Turf)
TIRE OUTSIDE DIAMETER (FRONT/REAR):
29
TIRE WIDTH (FRONT/REAR):
12.5
MAXIMUM SPEED:
12 mph
MAXIMUM GRADABILITY:
30%
TURNING RADIUS:
77"
UNLADEN WEIGHT:
4420 lbs
WORKING PRESSURE (ATTACHMENTS):
2500 psi
TILT OF MAST (FORWARD/BACKWARD):
8° / 7°
SIDESHIFT:
5.5"
FORK SECTION:
48 x 4 x 1.75"
REACH:
39.25"
HEIGHT TO TOP OF CANOPY:
84"
FORK CARRIAGE WIDTH (CLASS):
47.25" (II)
FRAME OPENING:
63.5"
OVERALL WIDTH:
96.5"
OVERHANG:
52.5"
WHEELBASE:
63.75"
CENTER OF GRAVITY (FROM FORK FACE):
14.5"
LIFT HEIGHT:
120"
MAST HEIGHT - COLLAPSED:
96.5"
MAST HEIGHT - RAISED:
178"
GROUND CLEARANCE:
11.5"
FACE OF FORK TO CENTER OF FRONT TIRE:
19"
ANSI STANDARD:
B56.6

The above specifications are not binding upon the manufacturer and may be changed without prior notice. Equipment shown may be equipped with options that will incur additional costs.
