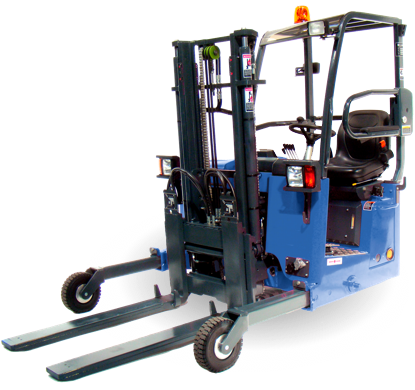

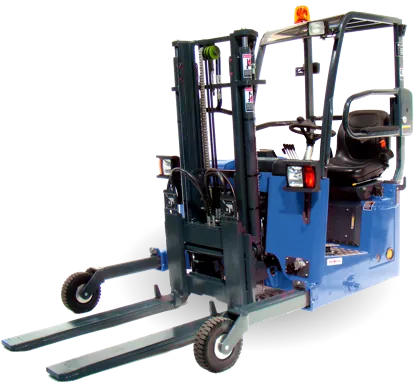

Princeton PiggyBack® PB36


The Princeton PB36 fits on Single Axle Delivery Trucks! Introducing the brand new upgrade to the tried and true PiggyBack Z1 – The Princeton PB36! This smaller and lighter model forklift can be carried behind “beverage-style” trailers with roll-up doors. With retracting wheel arms, the PB36 will even mount to the rear of trailers which have rear axles positioned fully to the rear of the trailer.

  • Features
  • Specifications
  • Downloads

BEYOND PERFORMANCE

The Princeton PB36 delivers:

• Inside Garages
• Over Long Distances
• To Retail Sites
• All-Weather Performance

The Princeton PB36 can be the perfect delivery tool for:

• Bottled Gas of All Types
• Beverage of All Types
• Storage Containers
• Industrial Supplies

Powerful

EPA Tier 4 Compliant Engine

Perhaps the biggest news with the new PB36 is the all new, technologically advanced, Tier 4 Final compliant engine. Offering higher horsepower, higher torque, improved fuel consumption, and greater service intervals; the new Kohler power plant is the greatest leap forward in technology on this new truck-mounted forklift.

Technical Specifications
MODEL:
PB36
TYPE:
STM / Telescopic Legs
CAPACITY @ 24” LOAD CENTER:
3600 lbs
CAPACITY @ 24" LOAD CENTER WITH LEGS RETRACTED:
2750 lbs
DIESEL ENGINE:
25 HP
ENGINE EMISSION COMPLIANCE:
Tier4 Final
MAXIMUM RPM:
3000 RPM
ELECTRICAL SYSTEM:
12 Volt
DRIVE WHEELS:
1
STEERING:
Hydrostatic
TIRE TYPE:
400 x 4 (IND)
23 x 8.5 - 12 (SS)
TIRE OUTSIDE DIAMETER (FRONT/REAR):
11.5" / 23"
TIRE WIDTH (FRONT/REAR):
4" / 8.5"
MAXIMUM SPEED:
7 mph
MAXIMUM GRADABILITY:
15%
TURNING RADIUS:
82"
UNLADEN WEIGHT:
3500 lbs
WORKING PRESSURE (ATTACHMENTS):
2500 psi
TILT OF MAST (FORWARD/BACKWARD):
8° / 7°
SIDESHIFT:
5.5"
FORK SECTION:
6.75 x 2.25 x 42"
REACH:
30"
HEIGHT TO TOP OF OVERHEAD GUARD:
81"
FORK CARRIAGE WIDTH (CLASS):
47.25" (III)
FRAME OPENING:
60"
OVERALL WIDTH:
80"
OVERHANG:
46"
WHEELBASE (EXT/RET):
63" / 47"
CENTER OF GRAVITY (FROM FORK FACE):
17"
LIFT HEIGHT:
87"
MAST HEIGHT - COLLAPSED:
78"
MAST HEIGHT - RAISED:
121"
GROUND CLEARANCE:
8"
FACE OF FORK TO CENTER OF FRONT TIRE (EXT/RET):
23" / 7"
ANSI STANDARD:
B56.6

The above specifications are not binding upon the manufacturer and may be changed without prior notice.

Weights may vary, depending on tire and/or fork options
