Home » Mitsubishi Forklifts » PWR30/PWR40

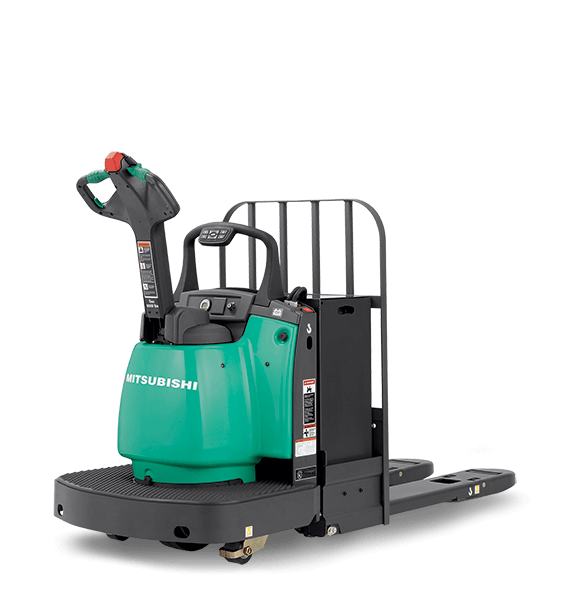

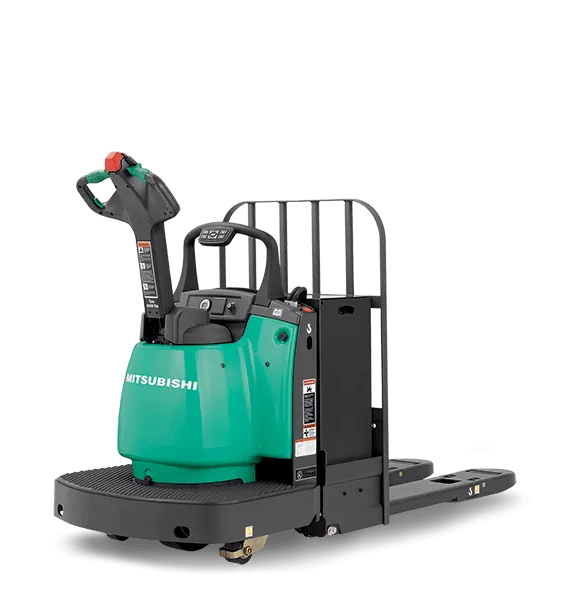

Adaptability is key with the PWR30/PWR40 end rider pallet truck series, making it the prime solution for a wide variety of applications where you need to move more pallets in less time.
Up to 9.3 mph.
Three-phase AC motor and high-output AC controller deliver greater power and quick acceleration.
Especially on ramps and inclines.
Means less downtime for charging and greater productivity.
Only operates when the pallet truck is moving chassis first toward the end rider.
Help protect fragile loads from tipping during tight turns.
Help protect product and racking by only advancing the rider pallet truck when the tiller is positioned in the straight forward position.
Regenerative braking is activated when the forklift decelerates, changes directions or when the service brakes are applied and helps return energy to the battery, extending run times and service brake life.
Consumes less energy, leading to extended battery life and increased run times.
The standing platform is the largest in the industry and also has the thickest padding – for all-day comfort.
Comfortable, butterfly twist grip throttle promotes easy operation, even while wearing gloves.
Control buttons on both sides allow easy access to the end riderfrom either side of the platform.
Offers the highest degree of comfort over uneven floors and docks.
AC motors have no wearable components, like carbon brushes or contactors, to replace over time. With the thickest forks in the industry, the ECR is designed to withstand the toughest applications over time.
Sealed electrical components mean that dust and moisture cannot impact the rider pallet truck’s performance.
Lithium-ion batteries feature a lower cost of ownership than lead-acid batteries by eliminating excessive maintenance costs
Lithium-ion batteries can be charged to full capacity in a fraction of the time it takes to charge a lead-acid battery. Opportunity charging that can be interrupted at any time, prevents downtimes and ensures 24/7 truck usage.
The battery, vehicle and charger are all synchronized which allows for fast and efficient energy usage and charging capability.
| Model | Basic Capacity (lbs) | Maximum Fork Height2 | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in)1 | Gross Weight (lbs)1 |
|---|---|---|---|---|---|---|---|
|
PWR30 |
6,000 |
8.7 |
24 |
42.3 |
35.8 |
58 |
2,730 |
|
PWR40 |
8,000 |
8.7 |
24 |
42.5 |
35.8 |
58 |
3,030 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
Talk to a Mitsubishi specialist who can help find the best solution for your needs and budget.
