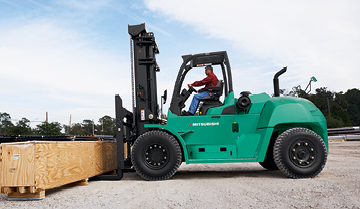

22,000-36,000 LB CAPACITY INTERNAL COMBUSTION DIESEL PNEUMATIC TIRE FORKLIFT

The heavy duty FD100N-FD160AN series delivers the power and performance needed for the most demanding material handling applications.

PRODUCTIVITY

Perkins™ 1204F Diesel Engine

A 4.4L high performance four-cylinder twin turbo diesel engine delivers exceptional power with increased fuel efficiency.

Maintenance-Free Emissions System

This heavy-duty truck meets and exceeds all Tier 4 Final EPA requirements thanks to a maintenance-free SCR aftertreatment system.

Sequential Twin Turbochargers

The sequential turbo chargers produce a strong boost raising the engine power and performance while maintaining maximum torque at a wide rpm range.

Powershift Transmission

The 3-speed robust transmission is matched with the powerful engine, providing optimal torque for all applications. The torque converter maintains peak torque and a smooth ride for different engine and transmission speeds resulting in maximum power with a reduction in fuel consumption.

LCD/LED Display

The operator can monitor all critical systems via the LCD/LED display during operation to help reduce costs and the risk of excessive downtime.

DURABILITY

Engine Protection System

Running a forklift that’s in need of maintenance can be costly. With the Engine Protection System, you can have confidence that your forklift operator will be warned if engine oil pressure, transmission fluid temperature and coolant temperatures need to be addressed.

Durable Steel Frame

Designed for harsh environments and rugged terrain, this Mitsubishi heavy duty truck frame is reinforced with steel plates for increased rigidity.

SERVICEABILITY

Easy To Service

Simplified maintenance means less downtime and more time on the job. This forklift’s design makes accessing key components easy, and no tools are required to access the engine compartment – saving you valuable time and money.

500-Hour Service Intervals

Mitsubishi designed this forklift with extended service intervals in mind. 500-hour intervals mean reduced maintenance costs over the long haul.

SAFETY

Integrated Presence System

Detects that the operator has their seat belt fastened. If not, the forklift will electronically lock-out powered travel movement and load handling functions. Additionally, a buzzer will sound and an icon on the display will further notify the operator.

Orange Seat Belt

Helps managers more easily identify whether an operator is wearing their seat belt.

LED Work Lights

LED lights have a longer lasting bulb life and more effectively light the work area. LED lights also have a longer operating life, reducing maintenance costs and downtime. The LED lights on the forklift are also covered under the standard warranty.

OPERATOR COMFORT

Fingertip Armrest Control

Designed with the operator in mind, the ultra-ergonomic fingertip armrest control provides precise load control with easy movement and comfortable hand positioning.

Optional Full-Suspension Vinyl Grammer® Seat

This seat helps reduce shock and vibration while optimizing comfort and productivity via 4-way adjustments, lumbar support, weight suspension and forward/backward adjustments.

Flexible Cab Options

For maximum operator comfort and protection from the elements, this forklift can be equipped with two cabin options: a fully-enclosed panel cabin and a wide cabin with these features:
  • Operator fan
  • High capacity heater system with defrost to circulate air evenly in the whole cabin
  • Elevated air intake pre-cleaner to prevent contaminants from prematurely clogging the air filter
  • High output alternator and auxiliary power plugs to allow for additional accessories
  • Spacious operator compartment
  • Premium double folding doors with the ability to lock in the open position
  • New floor plates design with easy access for service
  • Optional A/C package
  • Model Basic Capacity (lbs) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
    FD100N
    22,000
    177
    99
    119
    32,280
    FD120N
    26,500
    178
    99
    119
    34,580
    FD135N
    30,000
    179
    103
    121
    38,930
    FD150AN
    33,000
    191
    103
    121
    40,230
    FD160AN
    36,000
    199
    104
    121
    42,170

    1 Where applicable, does not reflect optional mast collapsed height or additional weight.
    2 Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
