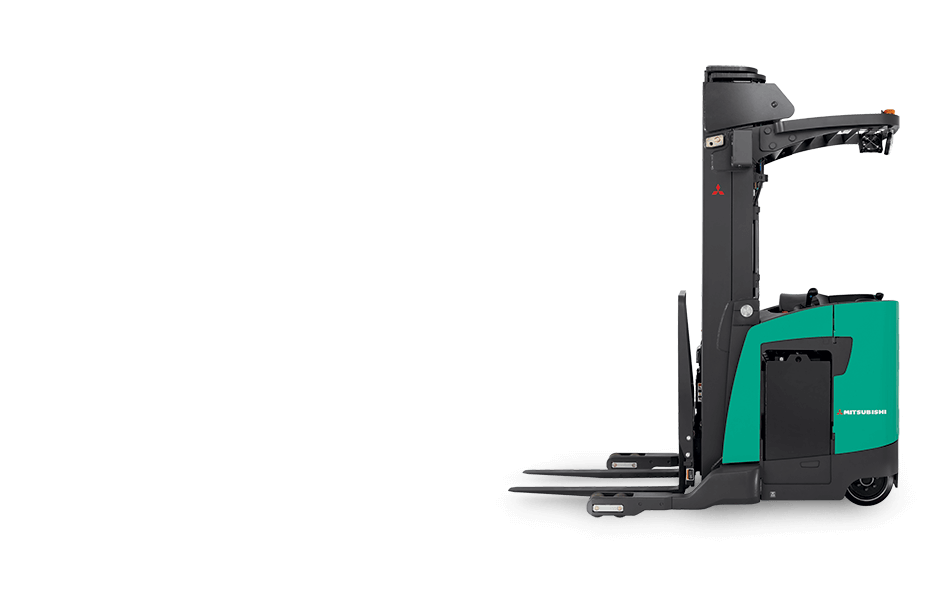

3,000 - 4,500 LB. CAPACITY SINGLE & DEEP ELECTRIC PANTOGRAPH REACH TRUCKS

The ESR15N2-ESR23N2 / EDR18N2 electric pantograph reach truck series offers efficiency and performance with the ability to run up to two shifts on one battery charge.

Productivity

Fast Lifting Speeds

One of the fastest in the industry, the electric reach truck’s hydraulic system reaches a lifting speed of up to 160 feet per minute with fork heights reaching up to 450 inches.

Customizable Performance

Three pre-programmed drive and hydraulic settings are available to customize the pantograph reach truck for a particular application or operator skill level. All information is immediately displayed, contributing to the operator’s overall awareness – leading to a more productive work environment.

Awareness

Dual Floorboard Pedal System

Helps to reduce risk by requiring the reach truck operator to be in the normal operating position to activate drive or hydraulic functions.

Slower Travel Speeds

Kicks in when forks are raised above the free-lift stage.

Energy Efficiency

Longer Run Times

The ESR series is built for efficiency – running up to two shifts on one battery charge in most applications – allowing your reach truck operators to get the most out of their workday.

Ergonomics

Intuitive Multi-Function Control Handle

The handle of the pantograph reach truck offers simultaneously control of drive, lift, lower and auxiliary hydraulic functions for better.

Ergonomic Design

Anti-fatigue floor mat and generous padding for knees, hips, back and armrest.

Low-Effort Electric Power Steering

For precise control with minimal effort.

Easy-To-Read Display

The forklift display panel keeps the operator informed of key performance indicators, such as battery charge level, hour meter and performance modes.

Total Cost of Ownership

Less Maintenance

Advanced three-phase AC motors require no carbon brushes, eliminating the cost of replacement parts and reducing the overall need for service or routine maintenance.

Enhanced Visibility

The ESR pantograph reach truck series features an enhanced-visibility, heavy-duty mast with durable rollers and mast rails designed to meet your most demanding applications. Combined with hydraulic cushioning and mast staging functions, operators can precisely and securely position loads at all lift heights.

Lithium-Ion Battery Solutions

Lower Lifetime Cost

Lithium-ion batteries feature a lower cost of ownership than lead-acid batteries by eliminating excessive maintenance costs

Increase Productivity

Lithium-ion batteries can be charged to full capacity in a fraction of the time it takes to charge a lead-acid battery. Opportunity charging that can be interrupted at any time, prevents downtimes and ensures 24/7 truck usage.

Increase efficiency

The battery, vehicle and charger are all synchronized which allows for fast and efficient energy usage and charging capability.

Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
ESR15N2
3,000
242
36
52.0
41.5
95
8,650
ESR18N2
3,500
242
36
55.0
41.5
95
8,650
ESR20N2
4,000
242
36
55.0
41.5
95
9,050
ESR23N2
4,500
242
36
55.0
41.5
95
9,050
EDR18N2
3,500
242
36
62.3
41.5
95
9,400

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
