Drexel SwingMast® Front Wheel Drive, Rear Wheel Steer VNA and Side Loading Forklift

The Drexel model SL60SE is a high capacity SwingMast® model that works in aisles as narrow as 66″ (1.7M), have a basic capacity of 6,000 lbs. (2722kg), and up to 8,000 lbs. (3629kg) at 24″ (600mm) load center and have lift heights available to 289” (7.34M).

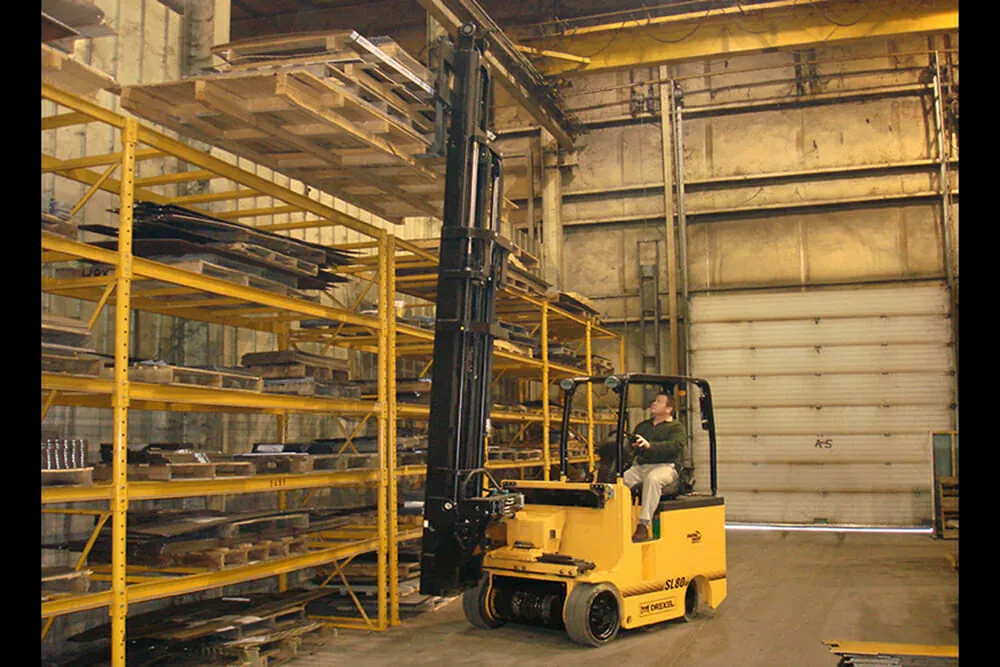

The SL60SE is a 4-Wheel SwingMast® VNA and Side Loading forklift with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. It can work inside and outside on paved surfaces and can perform the jobs of high capacity front loading and side loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL range does the jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.

Contact a Sales Rep

Productivity

Exceptional Performance and Maneuverability

The SL60SE and SL80SE’s fast lift/lower and travel speeds with a tight turning radius provide excellent maneuverability and productivity. The optional roll-out battery compartment allows fast battery changes for multi-shift operations. High Visibility three and four-stage masts are available for a wide range of applications including those with low overhead obstructions requiring high lift heights. Wire Guidance is a standard option on this model allowing safe, full-speed travel in the narrowest aisles.

Maximizes Material Handling Productivity

The versatile SL60SE and SL80SE forklifts replace conventional reach and counterbalanced fork trucks in standard warehouse pallet-handling operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operates in very narrow aisles in the warehouse, and replace reach and counterbalanced trucks that require much wider aisles. The operator’s compartment is offset providing a wide, long load-carrying side deck to be used as side loaders. The front tires are 20″ (508mm) diameter and the rear/steer tires are 16.25” (413mm) dia. providing great under clearance for avoiding floor obstructions. The rear steer axle is articulated to provide a smooth ride over rough floor conditions.

Other Features

  • 6,000 lb. (2722kg) and 8,000 lb. (3629kg) Capacities at 24″ (600mm) Load Center
  • Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Dual Joysticks Control all Hydraulic Functions
  • Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Adjustable Suspension Seat Improves Operator Comfort
  • Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times

Other Features

  • High Visibility Mast Allows Optimum Safety and View of Loads and Forks
  • SEPEX Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Curtis SEPEX Controllers Provide Trouble-Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 72 Volt Electrical System

Standard Specifications

  • Four-Wheel Configuration – 6,000 lb. (2,722kg) and 8,000 lb. (3,629kg) Capacity
  • 72 Volt Electrical System
  • Curtis SEPEX Dual Traction Motor Controllers
  • Curtis Series Hydraulic Motor Controller
  • Battery Discharge Indicator with Lift Interrupt
  • Hydrostatic Power Steering
  • 30” (762mm) of Shift-Includes 3” (76mm) of Reach
  • 40” (1,016mm) Long Shank Forks with Standard Taper
  • Poly Drive and Steer Tires
  • 42” (1066mm) High Load Backrest
  • Type E Construction
  • Anderson SBX350 Green Connector
  • Seat Belt (Retractable)
  • Horizontal Fork Indicator, Overhead Guard
  • Key Switch, Hand Parking Brake and Hour Meter
  • Meets ANSI B56.1

Optional Equipment

  • EE Construction (Includes Battery Side Cover)
  • Non-Standard Fork Lengths
  • Dual Overhead Guard Mounted LED Headlights
  • Dual Rear Safety LED Light Bars
  • Safety Flashing LED Light
  • Backup Alarm – Beeping Tone (“smart” dB adjusting)
  • Fire Extinguisher – OHG Post Mounted
  • Cold Storage Conditioning to -22° F (-30° C)
  • Roller Slide-Out Battery Tray
  • Lazer Fork Height Indicator
  • Fork Positioner
  • Keyless Key Pad On-Off
  • Long Load Handling Package
  • Auxiliary Hydraulics
  • Overload Sensor with Alarm

TECHNICAL DATA

Model SL60AC SL80AC
Capacity
lbs/kg
6,000 / 2,722
8,000 / 3,629
Load Center
in/mm
24 / 600
24 / 600
Weight with Battery
lbs/kg
Battery, Electric
Battery, Electric
Travel Speed
Loaded
mph/kph
6.9 / 11.1
6.9 / 11.1
Travel Speed
Unloaded
mph/kph
7.7 / 12.3
7.7 / 12.3
Lift Speed
Loaded
fpm/mpm
55 / 16.7
55 / 16.7
Lift Speed
Unloaded
fpm/mpm
70 / 21.3
70 / 21.3
Lower Speed
Loaded
fpm/mpm
95 / 28.9
95 / 28.9
Lower Speed
Unloaded
fpm/mpm
60 / 18.2
60 / 18.2
Mast Tilt
Forward / Backward
deg
3 / 4
3 / 4
Lost Load Center
A
with Triple Mast
in/mm
24 / 607
24 / 607
Wheelbase
B
in/mm
56 / 1,422
56 / 1,422
Overall Length to Face of Forks
C
with Triple Mast
in/mm
105 / 2,667
109 / 2,769
Underclearance
D
in/mm
4 / 102
4 / 102
Cab Floor Height
E
in/mm
32 / 889
32 / 889
Seat Height
F
in/mm
52 / 1,321
52 / 1,321
Overhead Guard Height
G
in/mm
90 / 2,286
90 / 2,286
Chassis Width
H
in/mm
52 / 1,321
56 / 1,422
Mast Shift
I
in/mm
30 / 762
30 / 762
Side Reach
J
in/mm
3 / 76
3 / 76
Side Deck Height
K
in/mm
52 / 1,321
52 / 1,321
Side Deck Width
L
in/mm
24 / 610
27 / 686
Fork Carriage Width
M
in/mm
41 / 1,041
41 / 1,041
Turning Radius
N
in/mm
93.5 / 2,375
96.5 / 2,451
Fork Length
in/mm
40 / 1,016
40 / 1,016
Gradeability
Loaded
%
15
15
Lift Motor Rating
kWh
17.6
17.6
Steer Motor Rating
kWh
6.5
6.5
Drive Motor Rating
2 Each
kWh
7.5 x 2
7.5 x 2
Wheel Sizes
Front (2 Each)
in/mm
20x9 / 508x229
20x9 / 508x229
Wheel Sizes
Rear (2 Each)
in/mm
16.25x7 / 413x178
16.25x7 / 413x178
Battery Recommended
Electric 80 Volt
kWh
53-55
53-55
Minimum Battery Weight
lbs/kg
4,300 / 1,955
4,300 / 1,955
Control Type
Traction, Dual
AC
AC
Control Type
Hydraulic
AC
AC

MAST DIMENSIONS

Lift Height (Inches) Lift Height (Meters) Lowered Height (Inches) Lowered Height (Meters) Free Lift* (Feet) Free Lift* (Meters)
SL60AC Triple (3 Stage) Mast
141
3.58
83
2.11
41
1.04
159
4.04
89
2.26
47
1.19
177
4.50
95
2.41
53
1.35
197
5.00
103
2.62
61
1.55
221
5.61
113
2.87
71
1.80
245
6.22
125
3.17
83
2.11
259
6.58
131
3.33
89
2.26
289
7.34
141
3.58
99
2.51
SL60AC Quad (4 Stage) Mast
294
7.47
117
2.98
75
1.91
SL80AC Duplex (2 Stage) Mast
108
2.74
98
2.49
56
1.42
SL80AC Triple (3 Stage) Mast
141
3.58
85
2.16
43
1.09
159
4.04
91
2.31
49
1.24
177
4.50
97
2.46
55
1.40
197
5.00
104
2.64
62
1.57
220
5.59
112
2.84
70
1.78
245
6.22
121
3.07
79
2.01
259
6.58
126
3.20
84
2.13
281
7.14
134
3.40
92
2.34

*Free Lift Based on 42″ (1067mm) High Load Backrest

RECOMMENDED BATTERY

Battery Designation: 40-85-17, 80 Volt, 680 AHC (6 Hour Rate)
Battery Weight Min: 4,300 lbs. (1955 kg) - Max. 4,700 lbs. (2,136 kg)
Leads: Position D, 36" Long, with SBX 350 Amp Black Connector, 2/0 Cable
Nominal Size: 39.9" x 44.625" x 22.625" (101 x 113 x 57.5 cm)
Compartment Size: 40.875" x 45.75" x 25" (104 x 116 x 63.5 cm)

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.
