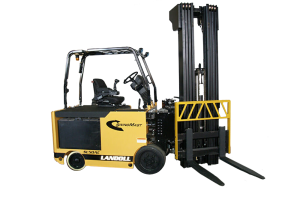

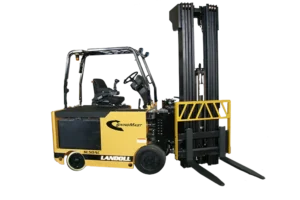

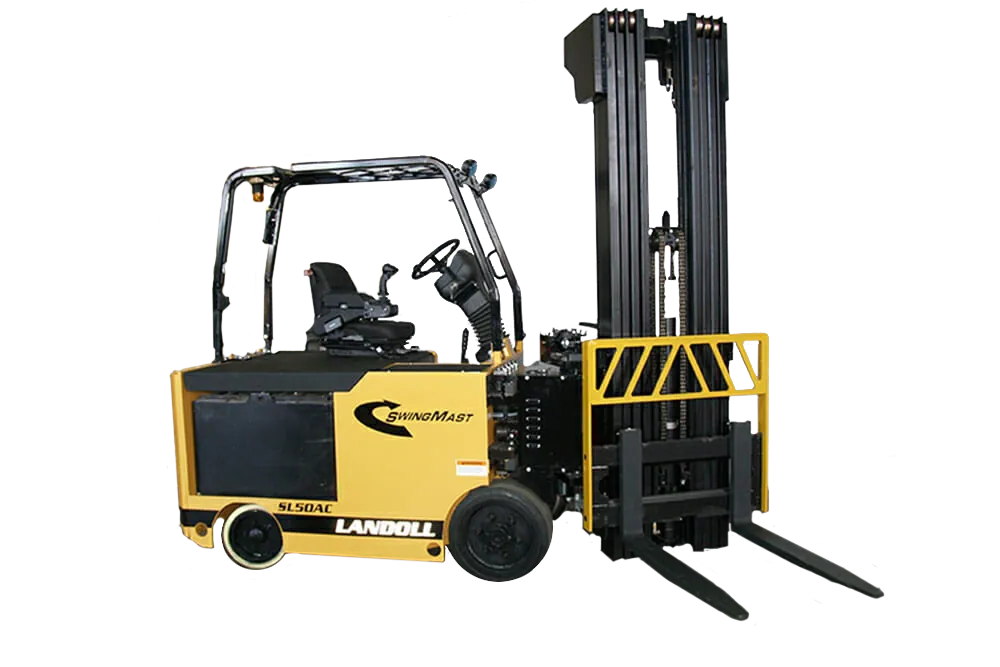

Drexel SwingMast® Front Wheel Drive, Rear Wheel Steer VNA and Side Loading Forklift

The Drexel model SL30AC, SL40AC and SL50AC work in aisles as narrow as 56″ (1.4M), have a basic capacity of 3,000 lbs. (1361kg), 4,000 lbs. (1814kg) and up to 5,000 lbs. (2268kg) at 24″ (600mm) load center and have lift heights available to 31′ (9.5M).

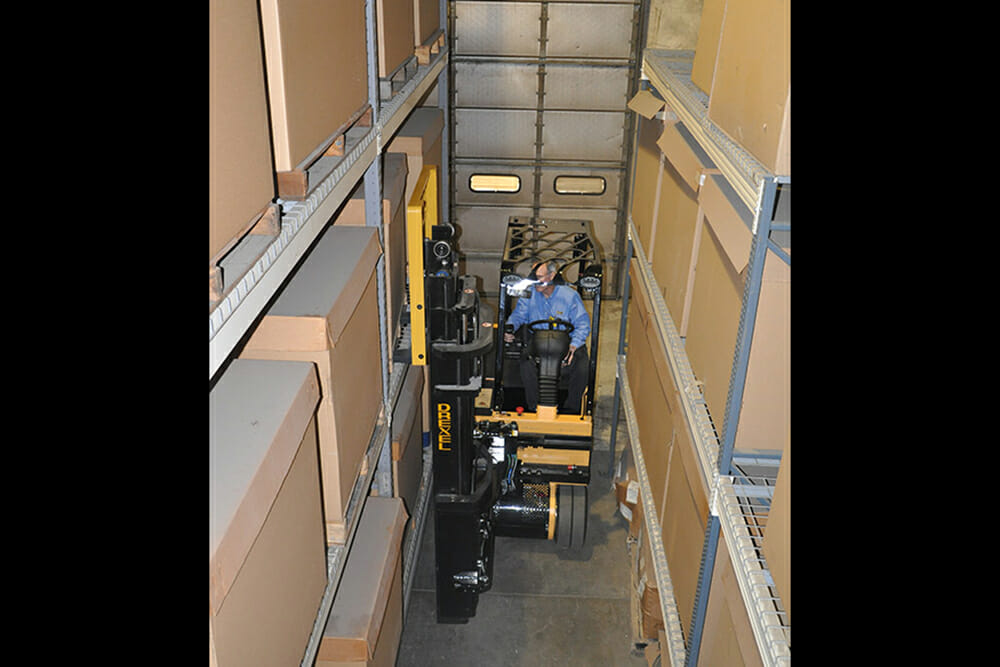

The SL30AC, SL40AC, and SL50AC are 4-Wheel SwingMast® VNA and Side Loading Forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has side shift of 22” (559mm), allowing easy stacking in Very Narrow Aisles. These models can work inside and outside on paved surfaces and can perform the jobs of a normal front loading and side loading forklift including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, cantilever rack, push back rack, double deep and climbing steep ramps. The SL range does the jobs of reach, counterbalanced trucks in aisles over 50% smaller. The ability to store and transport long loads as a side loader increases versatility and maximizes utilization.

Productivity

Exceptional Performance and Maneuverability

The SL30AC, SL40AC and SL50AC’s fast lift/lower and travel speeds and tight turning radius provide excellent maneuverability and productivity. The optional roll-out battery compartment allows fast battery changes for multi-shift operations. High Visibility three and four stage masts are available for a wide range of applications including those with low overhead obstructions still requiring high lift heights. Wire Guidance is a standard option on these models allowing safe, full-speed travel in the narrowest aisles.

Maximizes Material Handling Productivity

The versatile SL30AC, SL40AC, and SL50AC forklifts replace conventional reach and counterbalanced fork trucks in standard warehouse pallet handling operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operates in very narrow aisles in the warehouse, replacing reach and counterbalanced trucks that require much wider aisles. The operator’s compartment is offset providing a long load-carrying side deck so these trucks can be used as side loaders. The front tires are 20″ (508mm) diameter and the rear/steer tires are 14” (356mm) diameter providing great underclearance for avoiding floor obstructions. The rear steer axle is articulated to provide a smooth ride over rough floor conditions.

Other Features

  • 3,000 lb. (1361kg), 4,000 lb. (1814kg) and 5,000 lb. (2268kg) Capacity at 24″ (600mm) Load Center
  • Four-Wheel Design, Independently Driven Front-Drive Wheels and Dual Rear-Steering Wheels Provide Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Single Joystick Controls Hydraulic Functions, Directional Control, Horn and Wire Guidance
  • Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse

Other Features

  • Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
  • High Visibility Mast Allows Optimum Safety and View of Loads and Forks
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • 48 Volt Electrical System
  • Optional Cold Storage Conditioned to -22°F (-30°C)

Standard Specifications

  • 3,000 lb. (1,361kg), 4,000 lb. (1,814kg) and 5,000 lb. (2,268kg) Capacity at 24” (600mm) Load Center
  • Lift Heights to 374” (9.5M)
  • 56” (1.4M) Stacking Aisle
  • High Visibility 3-Stage or 4-Stage Mast
  • 48 Volt CAN-Bus Electrical System
  • Dual AC Traction Motor Controllers
  • AC Hydraulic Motor Controller
  • Hydraulic Power Steering by Main Hydraulic Pump (No Separate Power Steering Pump or Motor)
  • Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter
  • Four-Wheel Design, Dual Front Wheel Planetary Drives and Heavy Duty Articulating Rear Steer Axle
  • Right Side 16½” (419mm) Deep Long Load Deck
  • Large Diameter Poly Drive (Rubber on SL30AC) and Poly Steer Tires
  • 22” (559mm) of Mast Shift, Includes 3” (76mm) of Reach and 90° Right Side Mast Rotation
  • Comfortable Seated Operation with Single Joystick Hydraulic and Directional Control on Armrest
  • Mast Tilt of 3° Forward and 4° Back (Restricted to 1° Forward and 2° Back at 294” and Higher Lift Height)
  • Adjustable Cloth Suspension Swivel Seat with Adjustable Armrests
  • Adjustable Steering Column, Key Switch, Rear View Mirror, Horn, Seat Belt
  • Safety Seat Switch and Retractable Seat Belts
  • Hydraulic Front-Wheel Disc Brakes
  • Horizontal Tilt Indicator
  • 4-Post Adjustable Overhead Guard
  • 40” (1,000mm) Long End Tapered Forks, 37” (940mm) Wide Carriage and 36” (914mm) High Load Backrest
  • Provisions for RF Terminals
  • Accepts Class II Attachments
  • Easily Accessible Components for Low Cost Maintenance

Optional Equipment

  • Non-Standard Fork Lengths
  • LED Headlights, Flashing Light and Rear Safety Lights
  • Back-Up Alarm
  • Integral Fork Positioner
  • Auxiliary Hydraulics
  • Non-Marking Tires
  • UL-583 Type EE Electrical Rating, FM Approved
  • Vinyl Seat
  • Fire Extinguisher
  • Lazer Fork Height Indicator
  • Camera with Operator Compartment Monitor
  • 42” (1,067mm) Wide Fork Carriage
  • Battery Compartment Roll Out Tray
  • Wire Guidance Controls – Truck Mounted
  • Long Load Handling Deck Mount
  • Capable of Freezer Operation to -22°F (-30°C)

MAST DIMENSIONS

Lowered Height Based on 5" Mast Underclearance

Triple (3-Stage) Mast SL30AC / SL40AC / SL50AC

Lift Height (Inches) Lift Height (Meters) Lowered Height (Inches) Lowered Height (Meters) Free Lift* (Feet) Free Lift* (Meters)
188
4.78
85
2.16
49
1.24
198
5.03
89
2.26
53
1.35
216
5.49
97
2.46
61
1.55
223
5.66
100
2.54
64
1.63
242
6.15
109
2.77
73
1.85
258
6.55
117
2.97
81
2.06
272
6.91
123
3.12
87
2.21
296
7.52
131
3.33
95
2.41
312
7.92
134
3.40
98
2.49
323
8.20
140
3.56
104
2.64
360
9.14
158
4.01
122
3.10
374**
9.50
168
4.27
132
3.35
* Free Lift Based on 36" High Load Backrest
** 374" (9.5M) Mast Available on SL50AC Only

Quad (4-Stage) Mast SL30AC / SL40AC

Lift Height (Inches) Lift Height (Meters) Lowered Height (Inches) Lowered Height (Meters) Free Lift* (Feet) Free Lift* (Meters)
250
6.35
89
2.26
53
1.35
258
6.55
91
2.31
55
1.40
276
7.01
97
2.46
61
1.55
294
7.47
103
2.62
67
1.70
312
7.92
109
2.77
73
1.85

Quad (4-Stage) Mast SL50AC

Lift Height (Inches) Lift Height (Meters) Lowered Height (Inches) Lowered Height (Meters) Free Lift* (Inches) Free Lift* (Meters)
250
6.35
93
2.36
57
1.45
260
6.60
97
2.46
61
1.55
276
7.01
104
2.64
68
1.73
295
7.49
111
2.82
75
1.91
315
8.00
119
3.02
83
2.11
*Free Lift Based on 36" (914mm) High Load Backrest

TECHNICAL DATA

Model SL30AC SL40AC SL50AC
Capacity
lbs/kg
3,000 / 1,361
4,000 / 1,814
5,000 / 2,268
Load Center
in/mm
24 / 600
24 / 600
24 / 600
Weight
with Battery
lbs/kg
12,600 / 5,727
13,800 / 6,272
15,100 / 6,864
Travel Speed
Loaded
mph/kph
6.5 / 10.5
6.5 / 10.5
6.5 / 10.5
Travel Speed
Unloaded
mph/kph
7 / 11.3
7 / 11.3
7 / 11.3
Lift Speed
Loaded
fpm/mpm
90 / 27.4
90 / 27.4
90 / 27.4
Lift Speed
Unloaded
fpm/mpm
110 / 33.4
110 / 33.4
110 / 33.4
Lower Speed
Loaded
fpm/mpm
100 / 30.5
100 / 30.5
100 / 30.5
Lower Speed
Unloaded
fpm/mpm
90 / 27.4
90 / 27.4
90 / 27.4
Mast Tilt
to 293" (7.44M)
fwd/back
3 / 4
3 / 4
3 / 4
Mast Tilt
294" (7.46) and Higher
fwd/back
1 / 2
1 / 2
1 / 2
Mast Underclearance
in/mm
5 / 127
5 / 127
5 / 127
Lost Load Center
A
with Triple Mast
in/mm
25 / 635
25 / 635
25 / 635
Wheelbase
B
in/mm
53.5 / 1,359
53.5 / 1,359
53.5 / 1,359
Overall Length
C
with Triple Mast
in/mm
95.25 / 2,419
95.25 / 2,419
95.25 / 2,419
Rear Underclearance
D
in/mm
4.5 / 114
4.5 / 114
4.5 / 114
Cab Floor Height
E
in/mm
31 / 787
31 / 787
31 / 787
Seat Height
F
in/mm
50 / 1,270
50 / 1,270
50 / 1,270
Overhead Guard Height
G
in/mm
87 / 2,210
87 / 2,210
87 / 2,210
Chassis Width
H
in/mm
46 / 1,168
46 / 1,168
46 / 1,168
Mast Shift
I
in/mm
22 / 559
22 / 559
22 / 559
Side Reach
J
in/mm
3 / 76
3 / 76
3 / 76
Side Deck Height
K
in/mm
42.5 / 1,080
42.5 / 1,080
42.5 / 1,080
Side Deck Width
L
in/mm
16.5 / 419
16.5 / 419
16.5 / 419
Fork Carriage Width
M
in/mm
37 / 940
37 / 940
37 / 940
Step Height
N
in/mm
16.5 / 419
16.5 / 419
16.5 / 419
Fork Length
in/mm
40 / 1,016
40 / 1,016
40 / 1,016
Gradeability
Loaded
%
15
15
15
Hydraulic Motor Rating
Continuous Duty Rating
type/kWh
AC / 16.8
AC / 16.8
AC / 16.8
Traction Motor Rating
Continuous Duty Rating
type/kWh x 2
AC / 5.6 = 11.2
AC / 5.6 = 11.2
AC / 5.6 = 11.2
Drive Tire Type
Smooth Rubber
Smooth Poly
Smooth Poly
Drive Tire Size
Diameter x Width
in/mm
20x9 / 508x229
20x9 / 508x229
20x9 / 508x229
Steer Tires
Poly - Diameter x Width
in/mm
14x5 / 356x128
14x5 / 356x128
14x5 / 356x128

AISLE DIMENSIONS

LOAD DEPTH X WIDTH MINIMUM CLEAR AISLE
40" X 48" (1,000 x 1,200mm)
56" (1,422mm)
48" x 40" (1,200 x 1,000mm)
60" (1,524mm)
Minimum Clear Transfer Aisle with Load
138" (3,505mm)

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.

RECOMMENDED BATTERY

Battery Designation: 40-85-17, 80 Volt, 680 AHC (6 Hour Rate)
Battery Weight Min: 3,250 lbs. (1,477 kg) - Max. 3,900 lbs. (1,773 kg)
Leads: Position A, 36" (91.4cm) Long, with SB 350 Amp Blue Connector
Nominal Size: 33" x 38.5625" x 25.625" (84 x 98 x 65 cm)
Compartment Size: 33.5" x 38.625" x 25.75" (85 x 98 x 65 cm)

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.

Product Brochure - English

Drexel SL30AC, SL40AC, SL50AC
