Drexel High Capacity SwingMast®, Front Wheel Drive, Rear Wheel Steer VNA and Side Loading Forklift

The Drexel model SL120 is a specialized high capacity SwingMast® model that works in aisles as narrow as 72″ (1.8M), has a basic capacity of 12,000 lbs. (5443kg) at 24″ (600mm) load center and has lift heights available to 243” (6.17M).

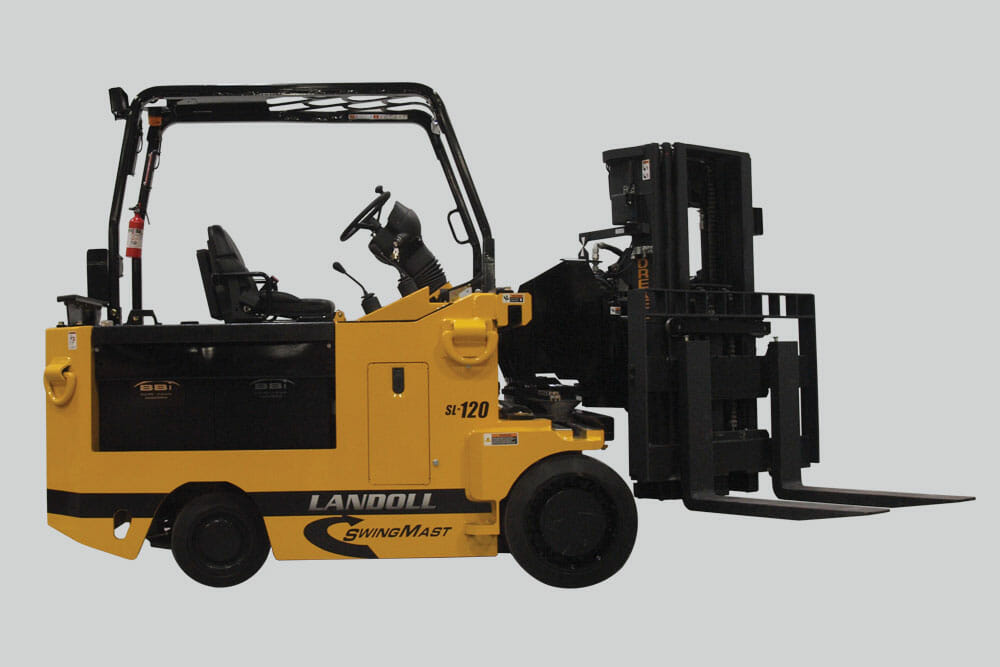

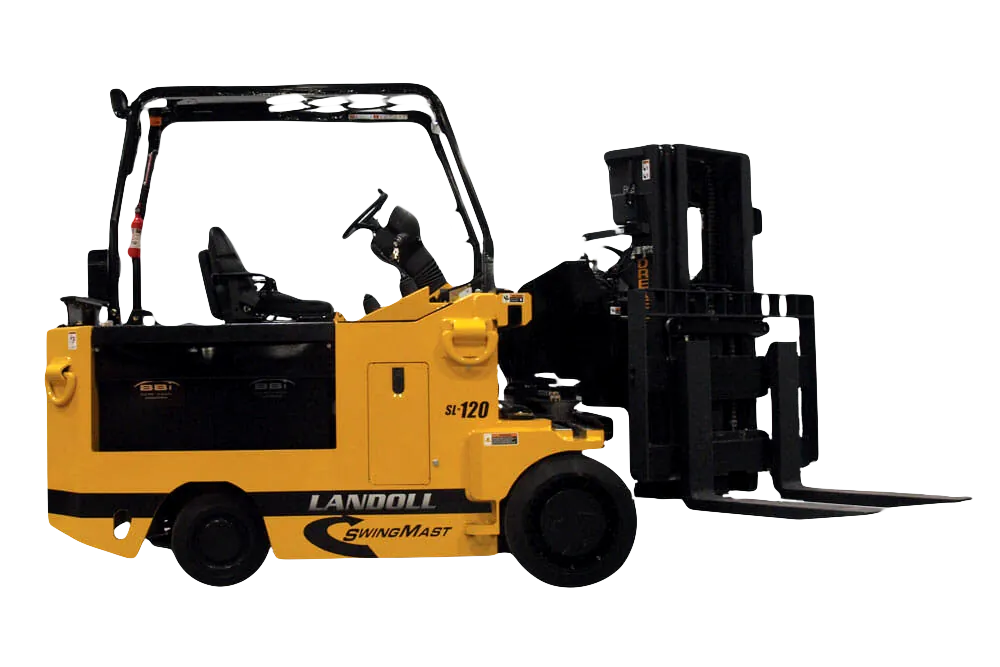

Drexel SL 120

The SL120 is a 4-Wheel SwingMast® VNA and Side Loading Forklift with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has a side shift of 44” (1118mm), allowing stacking easily in Very Narrow Aisles. The SL120 can also work inside and outside on paved surfaces, can perform the jobs of a high capacity front loading and side loading forklift combined including working in bulk storage, cantilever rack and climbing steep ramps. The SL120 performs the jobs of a high capacity counterbalanced truck but in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.

Exceptional Performance and Maneuverability

High Visibility three-stage mast, heavy-duty front end, and comfortable operator’s compartment make this truck productive, safe and ergonomically appealing for operators.

Maximizes Material Handling Productivity

The versatile SL120 forklift replaces conventional counterbalanced fork trucks in the standard warehouse and manufacturing heavy pallet and long-load handling operations. The unique design allows operators to use it as a counterbalance truck indoors or out, operate in very narrow aisles in the warehouse, and replace the counterbalanced trucks that require much wider aisles.

*Based on 48” (1200mm) long x 40” (1000mm) wide load.

Versatility of Use and Terrain

Offset Operator's Compartment

The operator’s compartment is offset providing a wide long load carrying side deck so the SL120 can also be used as a side loader.

High Clearance, Smooth Ride

The front tires are 22″ (559mm) dia. and the rear steer tires are 16.25” (413mm) dia. providing great under clearance for avoiding floor obstructions. The rear steer axle is articulated to provide a smooth ride over rough floor conditions.

*Based on 48” (1200mm) long x 40” (1000mm) wide load.

Other Features

  • 12,000 lb. (5443kg) Capacity at 24″ (600 mm) Load Center
  • Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Dual Joysticks Control all Hydraulic Functions
  • Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Adjustable Suspension Seat Improves Operator Comfort
  • Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
  • High Visibility Mast Allows Optimum Safety and View of Loads and Forks
  • Series Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • High Efficiency Controllers Provide Trouble Free Operation
  • Battery Discharge Indicator with Lift Interrupt, Hour Meter with Service Monitor and Diagnostic Code Display are Standard
  • 72 Volt Electrical System

Standard Specifications

  • Four Wheel Design, Front Wheel Drive, Rear Wheel Steering
  • High Visibility 3-Stage Mast
  • 72 Volt Electrical System
  • Safety Seat Switch and Retractable Seatbelt
  • Front-Wheel, Self-Adjusting Wet Disc Brakes
  • Hand Actuated Parking Brake
  • GE “SCR” Controls
  • Adjustable Steering Column with Battery Discharge Indicator and Hour Meter
  • Type “E” Construction
  • Hydrostatic Power Steering
  • Automatic Return-to-Neutral
  • Locking Differential
  • Load Backrest
  • Horizontal Tilt Indicator
  • Polyurethane Drive & Steer Tires

Optional Equipment

  • Type “EE” UL Construction
  • LED Headlights, Flashing Light, and Rear Safety Lights
  • Backup Alarm
  • Fire Extinguisher
  • Long Load Handling Deck Mount
  • Lift Limit
  • Integral Fork Positioner
  • Non-Standard Fork Lengths
  • Auxiliary Hydraulics
  • “X” Groove Polyurethane Drive & Steer Tires

TECHNICAL DATA

Model SL120
Capacity
lbs/kg
12,000 / 5,443
Voltage
72
Load Center
in/mm
24 / 610
Weight with Battery
lbs/kg
29,100 / 13,199
Travel Speed
Loaded
mph/kph
5 / 8.05
Travel Speed
Unloaded
mph/kph
6 / 9.65
Lift Speed
Loaded (5,500 lbs/2,495 kg)
fpm/mpm
30 / 9
Lift Speed
Unloaded
fpm/mpm
40 / 12
Lower Speed
Loaded
fpm/mpm
80 / 24
Lower Speed
Unloaded
fpm/mpm
35 / 11
Mast Tilt
Forward / Backward
deg
3 / 6
Mast Underclearance
in/mm
8 / 203
Lost Load Center
A
with Triple Mast
in/mm
30 / 762
Wheel Base
B
in/mm
59 / 1,499
Overall Length
C
in/mm
117 / 2,972
Underclearance
D
in/mm
5 / 127
Step Height
E
in/mm
18 / 457
Cab Floor Height
F
Lowest Point
in/mm
32 / 813
Side Deck Height
G
in/mm
44 / 1,118
Overhead Guard Height
H
in/mm
91 / 2,311
SIP to Bottom of OHG
I
in/mm
40 / 1,016
Overall Width
J
in/mm
69.5 / 1,765
Side Deck Width
K
in/mm
29 / 737
Fork Carriage Width
L
in/mm
54 / 1,372
Mast Shift
M
in/mm
44* / 1.118*
Side Reach
N
in/mm
4 / 102
Turning Radius
O
106 / 1.067
Fork Length
42 / 1,067
Gradeability
Loaded
%
10
Tire Type
Drive / Steer
Poly / Poly
Tire Sizes
Drive
in/cm
22x14x16 / 56x36x41
Tire Sizes
Steer
in/cm
16.2x8x11.2 / 41x20x28

MAST DIMENSIONS

Max Fork Height (Inches) Max. Fork Height (Meters) Collapsed Height (Inches) Collapsed Height (Meters) Free Lift Height* (Inches) Free Lift Height* (Meters) Max Overall Height (Inches) Max Overall Height (Meters)
135
3.43
82
2.08
42
1.07
177
4.50
153
3.89
88
2.24
48
1.22
195
4.95
168
4.27
94
2.39
54
1.37
210
5.33
178
4.52
98
2.49
58
1.47
220
5.59
193
4.90
104
2.64
64
1.63
235
5.97
207
5.26
110
2.79
70
1.78
249
6.32
233
5.92
120
3.05
80
2.03
275
6.99
243
6.17
124
3.15
84
2.13
285
7.24

Above Dimensions are Based on a 8″ (203mm) Mast Underclearance

RECOMMENDED BATTERY

Battery Dimensions and Specifications

Volts No. of Cells ACH (6 Hr Rate) (amp Hr / kWh) Min. Weight (lbs / kg) Max. Weight (lbs / kg) Width (in / mm) Length (in / mm) Height (in / mm)
72
36
765 / 55
4300 / 1950
4700 / 2131
38.38 / 975
44.38 / 1127
22.63 / 575
(2) 36
18
765 / 26.6
2140 / 971
2440 / 1106
19.31 / 490
44.31 / 1125
22.63 / 575
Max Allowable Battery Capacity per UL is 765 amp Hr (55 kWh_)
Battery Connector: 72 Volt - Green SBX 350; (2) 36 Volt - Gery SB 350
Battery Lead: 72 Volt - Position "D", Length 36", Cable Size 2/0 AWG, with 36 Volt Tap (2) 36 Volt - Position "A", Length 36", Cable Size 2/0 AWG
Battery Compartment Size: 45" x 39.74" x 22.75" (1143x1010x578mm)

Landoll continuously improves products. We reserve the right to make any changes in illustrations, specifications, equipment, and prices without prior notice and without changes on previous models.
