3,000 - 3,500 lb. Capacity Electric Turret Truck

The EKX 514/516k/516 high-rack man-up turret trucks set new standards for flexibility, low cost of operation and ergonomics. They also run two full shifts on one battery charge – guaranteed.

  • Features
  • Specifications
  • Downloads

Run 2 Shifts On 1 Charge.

GUARANTEED.

Jungheinrich® is now offering a game-changing guarantee on the 3,000 – 3,500 lb. turret truck. These lift trucks are guaranteed to run two full shifts without stopping to charge the battery – for five years. If your forklift doesn’t perform to this standard, we’ll cover the cost of a new battery to ensure it does.

Productivity

The Jungheinrich® 80 volt, 3-phase AC motor and high-output AC controller deliver greater power and quick acceleration.

Simultaneous lift and lower of the main and auxiliary masts mean the truck can reach the next location faster.

Higher residual capacities and optional Residual Capacity Plus increase the operational and slotting flexibility of these man-up turret forklift trucks.

Optional Warehouse Navigation System optimizes truck movement and provides automatic vertical and horizontal truck positioning.

Freezer Cabin option (pictured) provides a comfortable work environment in freezer applications below 28.4 degrees F.

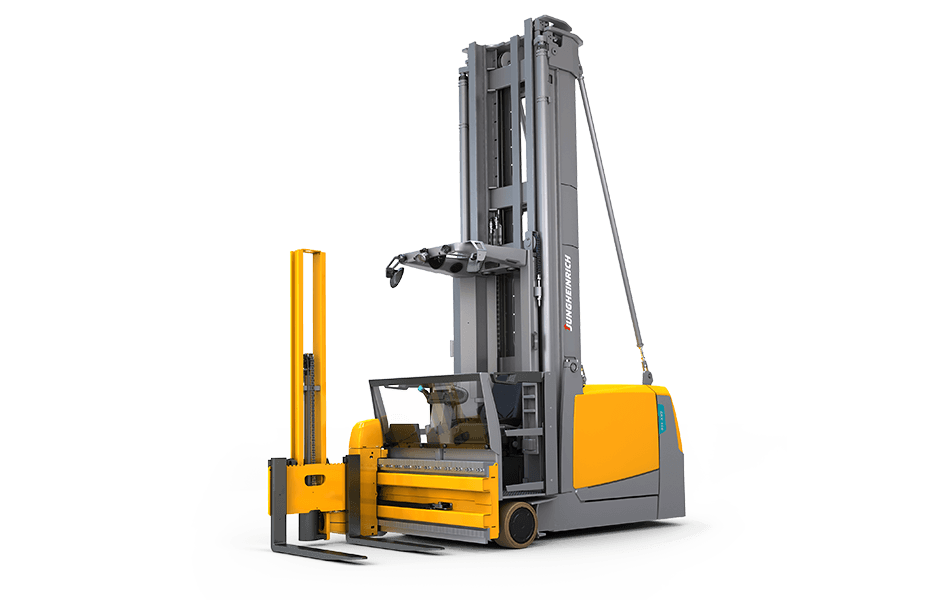

Awareness

Two-hand operation ensures operators keep their hands within the confines of the turret truck during operation.

The sturdy mast design and mast supports mean the mast will not sway at high heights.

Emergency lowering and descent brings the operator to the ground, should the truck become disabled while the mast is raised.

Optional Personnel Protection System senses the presence of pedestrians in working aisles and alerts the operator; slows and/or stops the truck as necessary.

Energy Efficiency

Double benefit of energy regeneration – when braking and when lowering – and effective energy management.

Get two full shifts with one battery charge in a typical application.

80-volt electrical configuration consumes less energy and yields high efficiency.

Ergonomics

Superior turret truck stability and virtually no mast sway at high lift heights lead to greater operator confidence.

Electrically-adjustable control panel puts the controls at the optimum position for each operator.

All drive and hydraulic functions are controlled through simple thumb activation.

Cushioned, cloth seat folds up with comfortable padding underneath for optional standing position.

Upholstered knee supports along front barrier add comfort while order picking.

Total Cost Of Ownership

Less maintenance while maintaining high-performance AC motors. The forklift’s active battery and energy management conserves battery and components, which all add up to lower costs and a more productive lift truck fleet.

Jungheinrich service technicians can also easily monitor the forklift’s key functions and parameters, helping to minimize downtime.

Warehouse Navigation Feature

Richardson Milling is the largest oat miller in North America, delivering more than 380 tons of raw oats per day. See how Jungheinrich’s Turret Trucks, equipped with Warehouse Navigation, help them eliminate the guesswork and reduce their cycle count times for great efficiency.

Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
EKX 514
3,000
374
80
133
57.1
100.4
14,440
EKX 516k
3,500
413
80
137.4
57.1
100.4
15,146
EKX 516
3,500
570
80
148
57.1
100.4
17,637

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

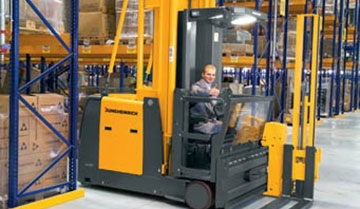

Product Spec Sheet - English

EKX 514/516k/516 High-Rack Turret Truck / Order Picker (Man-Up)

Product Spec Sheet - Spanish

EKX 514/516k/516 High-Rack Turret Truck / Order Picker (Man-Up)
