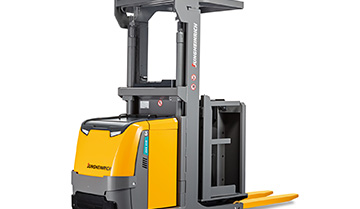

2,200 lb. Capacity Electric Low-Level Order Picker

The EKS 110 order picker utilizes 24-volt 3-phase AC technology for greater torque and responsiveness.

Productivity

Simultaneous control operation allows you to reach the next pick location faster.

The narrow chassis and tight turning radius allow for exceptional maneuverability.

The EKS 110 low level order picker retains full residual capacity at any lift height, even when equipped with an auxiliary mast.

Premium external controls (optional) allow the operator to advance the truck and lift the pallet to a comfortable picking election during ground-level picking – all without getting back onto the truck.

Awareness

Jungheinrich® Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

At lift heights above 40 inches, each truck is equipped with an overhead guard, retractable side gates, a full-body harness and shock-absorbing tether.

The controls act as rigid grasping points for the operator, which adds to overall stability.

Multiple warning and light options increase awareness and visibility in the warehouse.

Energy Efficiency

Features an energy efficient design for greater uptime, lower costs and reduced need for battery changes.

Innovative 3-phase AC motors offer greater performance, powerful acceleration and excellent energy management.

Regenerative braking is standard and captures lost energy and returns it to the battery for greater efficiency.

Ergonomics

The auxiliary mast (‘Z’ models) allows the operator to place picks at a comfortable height without bending.

The full-length, molded rubber floor mat provides lasting comfort throughout the shift.

Electric power steering allows the operator of the order picking truck to maneuver the truck with very little effort.

Total Cost Of Ownership

Excellent cost effectiveness thanks to the high rate of order picking and low energy consumption.

The forklift’s AC system features precise speed control, quickly adapts to varying conditions, and varies output for continued, consistent operation.

Electrical components are sealed to IP54 standards, protecting from water, moisture and dust that can impact the truck’s performance.

Industry-leading service tool gives technicians quick access to all major truck functions and parameters for faster service and maintenance.

Watch Customer Review

See how Classic Distributing increased their picking rates by 22% after switching to the Jungheinrich low-level order picker.

Lithium-Ion Package Advantages

  • Fast charging with no need for battery exchanges
  • Maintenance-free with no odors from gases or acidification
  • Longer service life compared to lead-acid batteries
  • Charging can be interrupted at anytime
  • 5-year battery warranty included
Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
EKS 110 (110E)
2,205
39.4
24
66.5
31.9
65.0
3,607
EKS 110 (160E)
2,205
63.0
24
66.5
31.9
89.0
3,880
EKS 110 (190E)
2,205
74.8
24
66.5
31.9
100.8
3,942
EKS 110 (280ZZ)
2,205
110.2
24
70.1
35.4
89.0
4,945

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
