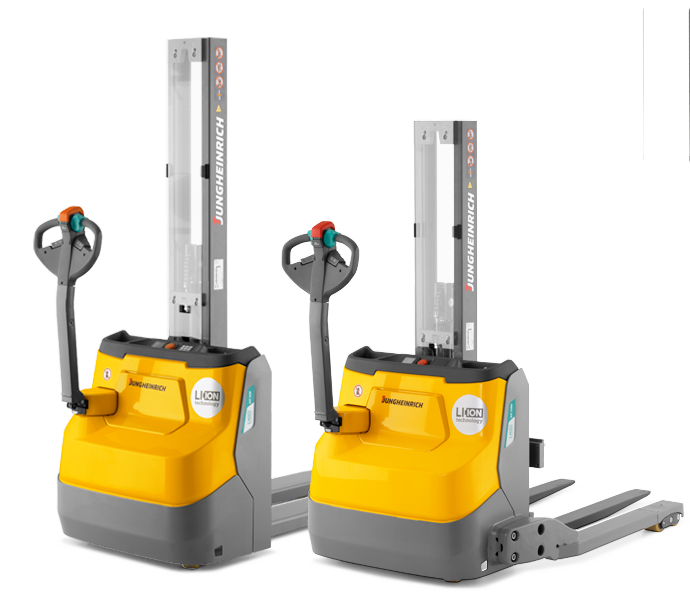

The EJC110 electric walkie combines productivity, efficiency and operator security in one user-friendly design.
Straddle stackers feature fast lifting speed for improved productivity.
Compact and maneuverable straddle stacker simplifies operation within narrow aisles.
Designed for precise and gentle depositing of fragile loads onto racking or the floor. The stacker’s lowering speed is electro-hydraulically controlled in 2 stages and can be controlled through a button on the handle head (optional).
Offset drive unit creates higher four-point wheel stability.
Large, red emergency cut-off switch enables quick, intuitive shut down of forklift in case of emergency.
The walkie stacker battery, when combined with energy-efficient 3-phase AC technology, provides long operating times.
Standard Maintenance-free 24V / 50 Ah Lithium-ion battery
Integrated 115V charger and cord for fast, simple charging at any 110 / 120V wall outlet.
Ergonomic, multi-function tiller head.
Unique, single cylinder mast design for a superior view of the load.
The walkie stacker is easily maneuvered with the handle in the vertical position by pressing the crawl-speed button.
Lift and lower controls combined on a rocker switch for convenient operation in any handle position.
Slim profile mono mast design for a superior view of the load.
Low maintenance 3-phase AC drive motor.
Integrated charger sealed within IP54-protected controller.
Tiller head and electrical connectors protected to IP65.
Easy access to all forklift components through the durable front cover.
| Model | Basic Capacity (lbs) | Maximum Fork Height2 | Voltage (or Fuel Type) | Length To Fork Face | Chassis Width (in) | Chassis Height (in)1 | Gross Weight (lbs)1 |
|---|---|---|---|---|---|---|---|
| EMC B10 | 2,200 | 60.6 | 2 x 12 | 21.1 | 43.3 | 77.6 | 1,479 |
| EMC B10 | 2,200 | 78.7 | 2 x 12 | 21.1 | 43.3 | 95.7 | 1,506 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
EMC B10 – 110 Medium-Duty Walkie Stacker
EMC B10 – 110 Medium-Duty Walkie Stacker
Talk to a Jungheinrich specialist who can help find the best solution for your needs and budget.
