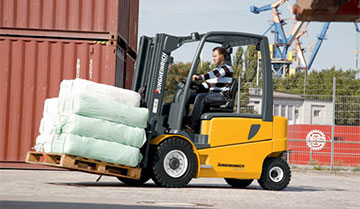

5,000 - 6,500 lb. Capacity Electric Four-Wheel Pneumatic Tire Forklifts

The EFG 425k-S30 series provides industry-leading drive and lift performance levels and a guarantee to run two shifts on a single battery charge in most applications.

  • Features
  • Specifications
  • Downloads

Run 2 Shifts On 1 Charge.

GUARANTEED.

Jungheinrich® is now offering a game-changing guarantee on the 5,000 – 6,500 lb. four-wheel pneumatic tire forklifts. These lift trucks are guaranteed to run two full shifts without stopping to charge the battery – for five years. If your forklift doesn’t perform to this standard, we’ll cover the cost of a new battery to ensure it does.

Productivity

The forklift’s operator compartment provides a relaxed and productive operation with features such as:

Full-suspension, 3-way adjustable seat
3-way adjustable armrest with built-in USB power port
3 square feet of storage space and surfaces

Enjoy maximum output with high acceleration, travel and lift speeds.

Awareness

Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

Multiple warning and light options increase awareness and visibility in the warehouse.

Orange seat belt helps increase awareness and easy visual verification.

Truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.

Energy Efficiency

Experience two shifts on a single battery charge (in most applications) due to the forklift’s advanced 3-phase AC technology and compact component design.

Features regenerative braking, designed to recover lost energy during plugging, braking and coasting. The energy is channeled back into the lift truck’s battery, extending operating time and reducing charging time.

Ergonomics

Electronic hydraulic controls offer the highest level of operational ease.

SOLO-, MULTI- or DUO-PILOT hydraulic controls are available to match the operational preferences of operators to maximize their productivity.

Full-suspension seat helps to cushion the operator from vibrations and bumps when traveling over uneven surfaces.

Electric power steering (optional on some models) allows the operator to maneuver the truck with very little effort.

Total Cost Of Ownership

Jungheinrich AC motors feature sealed components for added protection from dust and water (protected to IP54 standards). Motor, brake and gears are also integrated into the sealed drive axle for additional durability.

Forklift’s wet disc brakes are sealed for extreme durability in harsh environments helping to safeguard your investment.

Jungheinrich technicians can easily monitor and assess the truck’s major functions, allowing them to more quickly and accurately service the forklift.

Lithium-Ion Package Advantages

Fast charging with no need for battery exchanges


Maintenance-free with no odors from gases or acidification


Longer service life compared to lead-acid batteries


Charging can be interrupted at anytime


5-year battery warranty included

Model Basic Capacity (lbs) Maximum Fork Height2 Voltage (or Fuel Type) Length to Fork Face Chassis Width (in) Chassis Height (in)1 Gross Weight (lbs)1
EFG 425k
4,928
275
80
90.4
47.2
88.2
10,472
EFG 425
4,928
275
80
96.1
47.2
88.2
10,311
EFG 430k
5,917
275
80
90.6
47.2
88.2
11,530
EFG 430
5,917
275
80
96.3
47.2
88.2
11,303
EFG S30
6,608
275
80
96.5
51.2
88.2
11,876

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
