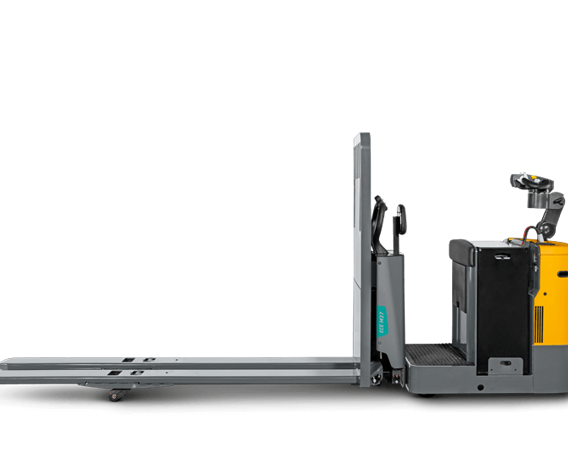

6,000 & 8,000 lb. Capacity Electric Center Control Rider Pallet Trucks

From the spacious operator compartment, to excellent travel speeds and the 5-point suspension frame design, you can count on the Center Control Rider ECE M27-ECE M36 to meet the extreme demands of your operations.

Features
Specifications
Downloads

Productivity

Equipped with 3-phase AC technology, our center control riders are designed to provide long run times to increase the productivity of your operations.
Drive wheel and swivel caster wheels are independent from the rear load frame.This design allows for smooth movement of the chassis, increased load stability and effortless control for increased throughput.
The spacious and ergonomic semi-enclosed operator compartment not only helps to keep the operator fresh throughout the shift, but also allows for efficient “walk-through” for faster order picking.
Low utilization of energy consumption per charge cycle allows for longer run times and greater throughput.

Maneuverability

A short chassis design allows for great turning radius and excellent maneuverability performance.
With 190-degree steering arc capabilities, operators of varying skill levels can efficiently and precisely maneuver these trucks, especially in more restrictive or confined spaces.

Intuitive

The large steer head requires minimal steering effort and makes it easy for operators to control the truck.
Intuitive fingertip controls and soft-touch switch design makes operation extraordinarily comfortable.
Rotary thumb travel speed controls that can be operated from either side provide operator flexibility.
The ergonomic, intuitive and removable soft-grip grab bar helps to provide comfortable grip during operation for increased operator support.

Awareness

Excellent visibility in all directions.
Intuitive standard Multifunction Digital Indicator (MDI) keeps the operator informed of truck status at all times with a quick glance.
Optional multi-functional LCD display provides even greater operator awareness and customized performance settings.
Optional travel alarm helps to increase pedestrian awareness of the truck’s presence.

Total Cost of Ownership

Brushless AC drive motors with no commutators and no contactors utilize fewer parts, requiring less maintenance.
IP65 enclosed frame design helps to keep debris and foreign particles from entering major components, better protecting your investment.
Regenerative braking system leads to longer brake life and reduced build-up within the drive motor.
Tried and tested, proven components ensure low maintenance costs and long-lasting reliability.

Model	Capacity (lb)	Height²	Voltage	Length	Width (in)	Height (in)¹	Weight (lb)¹
ECE M27	6,000	9.25	24 V	56.9	35.1	55.7	1,895
ECE M36	8,000	9.25	24 V	56.9	35.1	55.7	1,895

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

Product Spec Sheet - English

ECE M27-M36 Center Control Rider

Product Spec Sheet - Spanish

ECE M27-M36 Center Control Rider
