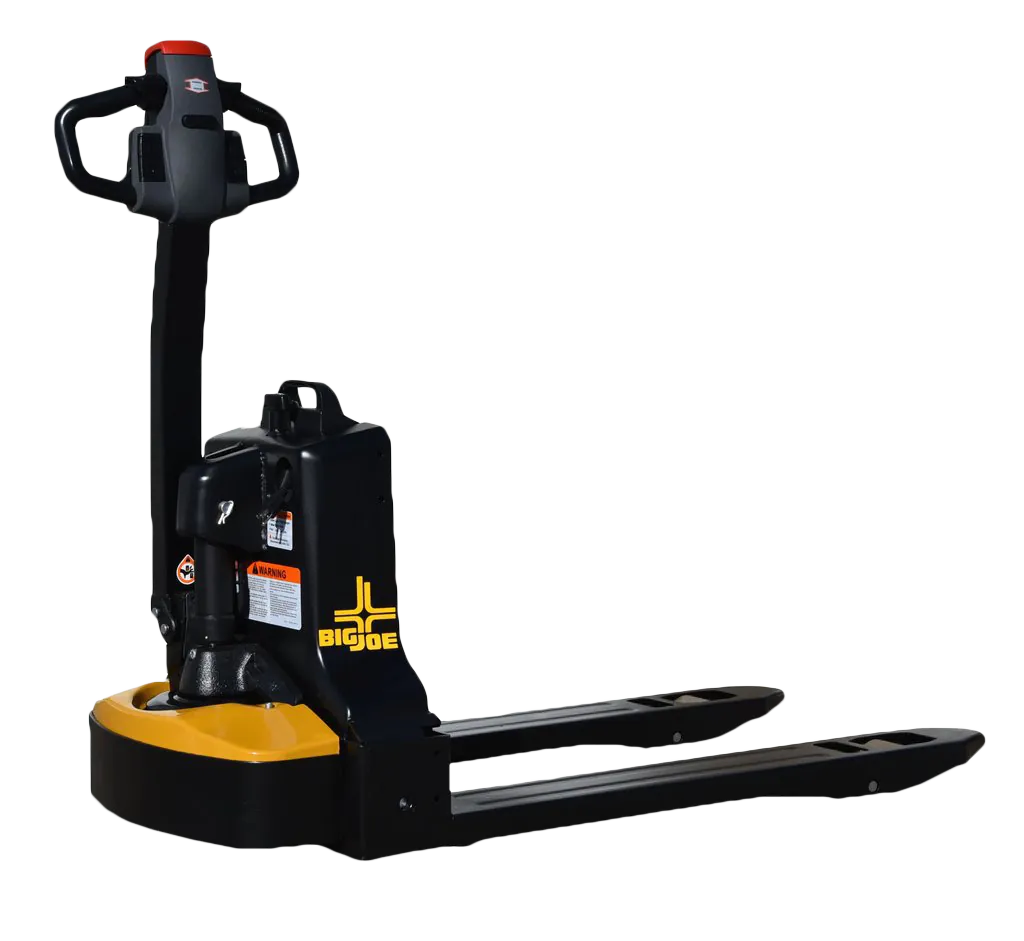

The LPT33 Is An Economical Choice For Deliveries And Medium Duty Material Handling.

Our 3,300 lb capacity fully electric pallet truck is the most compact and maneuverable product in its class.  When coupled with an optional additional easy exchange Li-ion battery, you can achieve infinite duty cycles thanks to their rapid recharge rate and extended run time!

If you’re making deliveries with a lift gate fleet, or moving pallets all day long, the LPT33 is the right choice.

  • Features
  • Specifications
  • Downloads

The LPT33 Features:

  • Up to 2 hours of run-time per charge
  • Ergonomic handle with reversing switch, horn and dual “butterfly”
  • Thumb controls are intuitive and allow for safe, accurate operation
  • The unique Easy Exchange battery system functions like common cordless hand tools
  • Strong permanent magnet drive motor
  • Battery discharge indicator
  • Key switch to limit access to approved personnel
Vehicle Type
Lithium Pallet Truck
Capacity
3,300lbs. @ 24” load center
Power
24 volt electric with transistor controller
Max Lift Height
7.5”
Collapsed Height
3.25"
Fork Dimensions
27” W x 48” L standard
Vehicle Dimensions
See product information sheet
Turning Radius
See product information sheet
Travel Speed & Lift
See product information sheet
Battery Compartment
Easy exchange lithium ion battery
Battery Capacity
24-volt 20AH rechargeable
Charger
110V plug-in internal

Product Brochure - English

LPT33 – Lithium Pallet Truck
