Home » Piggy-Back Forklifts » PB55+ 4-Way

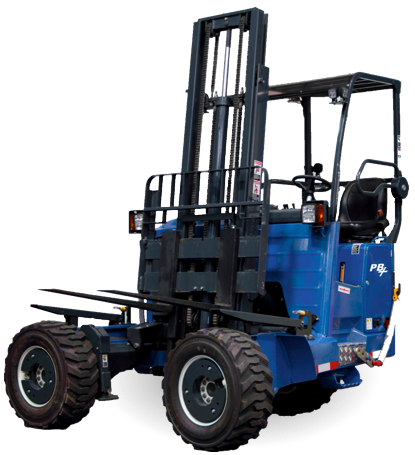

The 5,500 lb. capacity PiggyBack® PB55+ 4-Way offers the most versatility in truck-mounted forklifts.
The PB55+ 4-Way has the lift capacity and power of a PB55+, but adds four directional steering. With the flip-of-a-switch the PB55+ 4-Way converts into side-directional mode permitting the unit to be driven sideways in the direction of the load. driving the unit “sideways” in the direction of the load.
Ideal for delivering extra long loads in those hard to negotiate, highly congested areas previously inaccessible at most construction job sites. Nothing can outmaneuver or outperform the versatile PiggyBack® PB55+ 4-Way.
| Technical Specifications | |
|---|---|
|
MODEL: |
PB55+ 4-Way |
|
TYPE: |
4-Way |
|
CAPACITY @ 24” LOAD CENTER: |
5500 lbs |
|
DIESEL ENGINE: |
56 HP |
|
ENGINE EMISSION COMPLIANCE: |
EPA Tier4 Final |
|
MAXIMUM RPM: |
2700 RPM |
|
ELECTRICAL SYSTEM: |
12 Volt |
|
DRIVE WHEELS: |
3 |
|
STEERING: |
Hydrostatic |
|
TIRE TYPE: |
31 x 13 - 16.5 (SS) 31 x 15.5 - 15 8-Ply (TG) |
|
TIRE OUTSIDE DIAMETER (FRONT/REAR): |
31.5" / 31" |
|
TIRE WIDTH (FRONT/REAR): |
13" / 15.5" |
|
MAXIMUM SPEED: |
7 mph |
|
MAXIMUM GRADABILITY (4-WAY MODE): |
30% (15%) |
|
TURNING RADIUS: |
78" |
|
UNLADEN WEIGHT: |
6570 lbs |
|
UNLADEN WEIGHT (OPTIONAL):
7120 lbs
|
7120 lbs |
|
WORKING PRESSURE (ATTACHMENTS): |
2500 psi |
|
TILT OF MAST (FORWARD/BACKWARD): |
10° / 8° |
|
SIDESHIFT: |
5" |
|
FORK SECTION: |
48 x 6 x 2" |
|
MAST CARRIAGE TRAVEL: |
31" |
|
HEIGHT TO TOP OF CANOPY: |
103" |
|
FORK CARRIAGE WIDTH (CLASS): |
48.25" (II) |
|
FRAME OPENING: |
57.25" |
|
OVERALL WIDTH (4-WAY MODE): |
101.25" (108) |
|
OVERHANG: |
60" |
|
WHEELBASE: |
65.5" |
|
CENTER OF GRAVITY (FROM FORK FACE): |
17" |
|
LIFT HEIGHT: |
120" / 144" |
|
MAST HEIGHT - COLLAPSED: |
97.25" / 107.25" |
|
MAST HEIGHT - RAISED: |
157" / 179.5" |
|
GROUND CLEARANCE: |
8" |
|
FACE OF FORK TO CENTER OF FRONT TIRE: |
15" |
|
ANSI STANDARD: |
B56.14 |
The above specifications are not binding upon the manufacturer and may be changed without prior notice.
Weights may vary, depending on tire and/or fork options
